สภาพดีราคา 49,999.B สนใจติดต่อ 0816623531
MC 7106
SIX CHANNEL POWER AMPLIFIER The Compendium
FRONT PANEL: Glass with illuminated teal/gold nomenclature. Power indicator light. 
Channel ONE and TWO POWER GUARD lights. Channel THREE and FOUR POWER GUARD
lights. Channel FIVE and SIX POWER GUARD lights.  Six LED POWER LEVEL columns in
X10 increments from .01W to 100W for each channel.

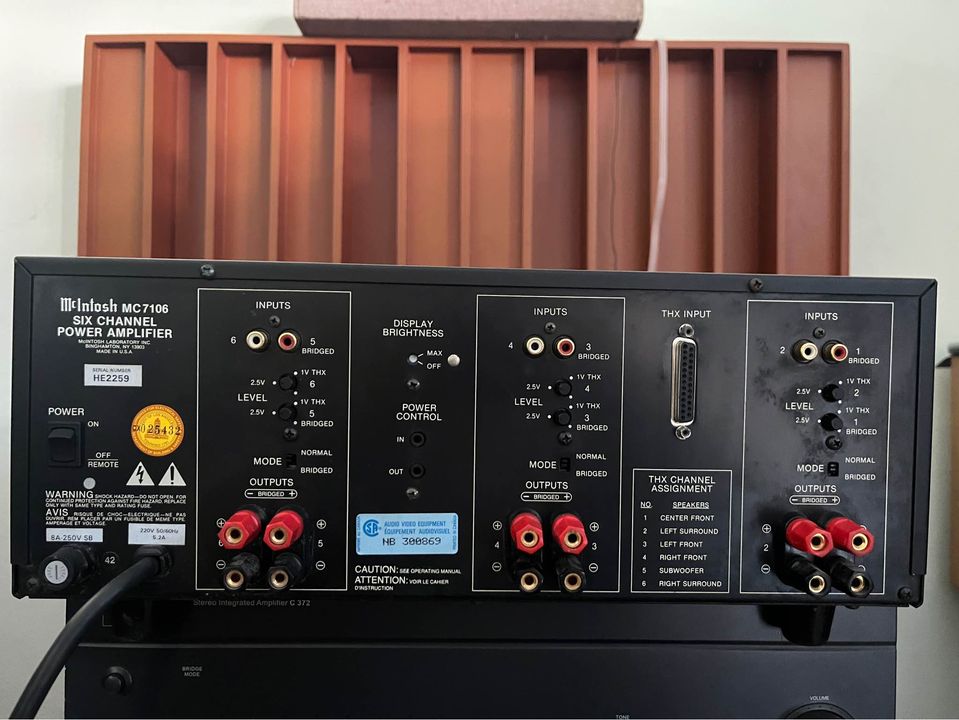

BACK PANEL: POWER switch: ON or OFF/REMOTE. FUSE. Power cord. [Channels 6 and 5
section: INPUTS: 6 and 5 / BRIDGED. 6 and 5 / BRIDGED LEVEL controls: 2.5V to 1.0V THX.
MODE switch: NORMAL or BRIDGED. Speaker OUTPUTS terminals: 6 and 5]. DISPLAY
BRIGHTNESS control: MAXimum to OFF. POWER CONTROL jacks: IN and OUT. [Channels 4
and 3 section: INPUTS: 4 and 3 / BRIDGED. 4 and 3 / BRIDGED LEVEL controls: 2.5V to
1.0V THX. MODE switch: NORMAL or BRIDGED. Speaker OUTPUTS terminals: 4 and 3].
THX 25 pin INPUT connector. [Channels 2 and 1 section: INPUTS: 2 and 1 / BRIDGED. 2
and 1 / BRIDGED LEVEL controls: 2.5V to 1.0V THX. MODE switch: NORMAL or BRIDGED.
Speaker OUTPUTS terminals: 2 and 1].
SPECIFICATIONS: Six channels. 100w/ch into 8 ohms or 160w into 4 ohms. (300w
into 8 ohms mono with 2 channels bridged). Response: 20-20kHz (+0 -0.25dB).
Distortion: 0.005%. Noise and Hum: -113dBA. Output: direct coupled for 4 to 8
ohms. Damping Factor: 100 or greater. Input Impedance: 20k. Input
Sensitivity: 1v. Sentry Monitor. Power Guard. Direct coupled. THX approved.

ด้านหลัง
