1.Krell S-1500 สภาพดีราคา 89,990.B
2.EMOTIVA XPA-7 สภาพดีราคา 75,900.B
3.ROTEL RMB-1585 สภาพดีราคา 57,900.B
สนใจติดต่อ 0816623531

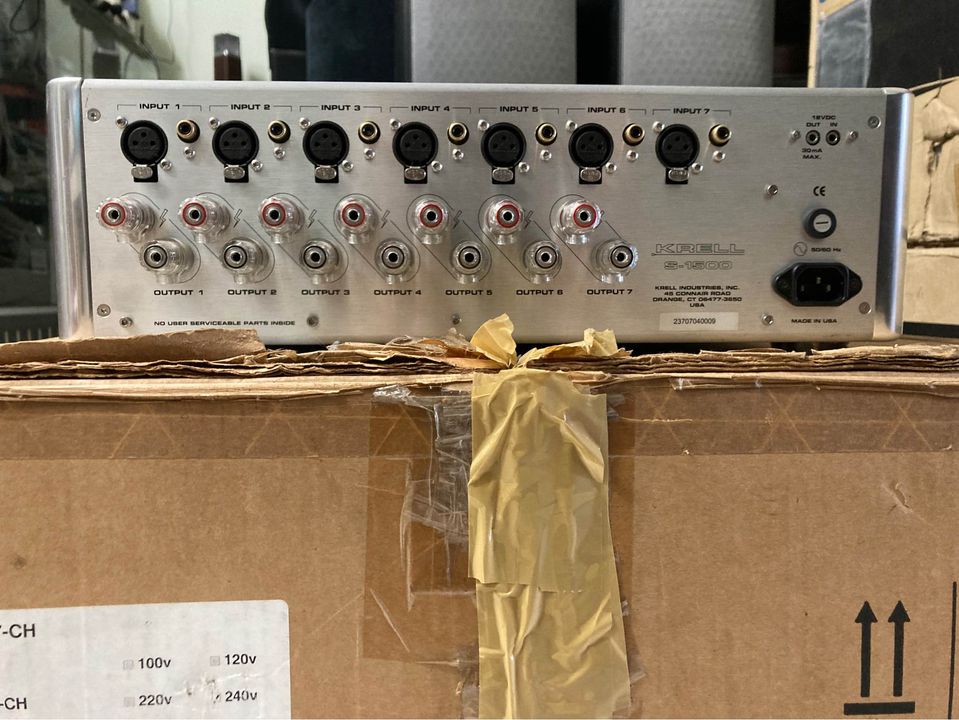

Krell S-1500
Specifications
S–1500 / 7 S–1500 / 6 S–1500 / 5
FREQUENCY RESPONSE 20 Hz to 20 kHz 20 Hz to 20 kHz 20 Hz to 20 kHz
+0, -0.2 dB +0, -0.2 dB +0, -0.2 dB
<0.2 Hz to 95 kHz <0.2 Hz to 95 kHz <0.2 Hz to 95 kHz
+0 dB, -3 dB +0 dB, -3 dB +0 dB, -3 dB
SIGNAL TO NOISE RATIO
WIDEBAND, UNWEIGHTED
REFERRED TO FULL POWER
OUTPUT >104 dB >104 dB >104 dB
“A” WEIGHTED >115 dB >115 dB >115 dB
GAIN 26.2 dB 26.2 dB 26.2 dB
TOTAL HARMONIC < 0.03%@1kHz, < 0.03%@1kHz, < 0.03%@1kHz,
DISTORTION (THD) at 150 W, 8 Ohms at 150 W, 8 Ohms at 150 W, 8 Ohms
< 0.20%@20 kHz, < 0.20%@20 kHz, < 0.20%@20 kHz,
at 150 W, 8 Ohms at 150 W, 8 Ohms at 150 W, 8 Ohms
INPUT IMPEDANCE
SINGLE-ENDED 45 kOhms 45 kOhms 45 kOhms
BALANCED 90 kOhms 90 kOhms 90 kOhms
INPUT SENSITIVITY
SINGLE-ENDED
OR BALANCED 1.70 Vrms 1.70 Vrms 1.70 Vrms
OUTPUT POWER 150 Wrms @ 8 Ohms 150 Wrms @ 8 Ohms 150 Wrms @ 8 Ohms
EACH CHANNEL DRIVEN 300 Wrms @ 4 Ohms 300 Wrms @ 4 Ohms 300 Wrms @ 4 Ohms
OUTPUT VOLTAGE 98 V peak-to-peak 98 V peak-to-peak 98 V peak-to-peak
35 Vrms 35 Vrms 35 Vrms
OUTPUT CURRENT 15 A peak 15 A peak 15 A peak
SLEW RATE 60 V/μs 60 V/μs 60 V/μs
OUTPUT IMPEDANCE <0.070 Ohms at 20 Hz <0.070 Ohms at 20 Hz <0.070 Ohms at 20 Hz
<0.080 Ohms, <0.080 Ohms, <0.080 Ohms,
20Hz to 20 kHz 20Hz to 20 kHz 20Hz to 20 kHz<
DAMPENING FACTOR 115 at 20 Hz, 115 at 20 Hz, 115 at 20 Hz,
referred to 8 Ohms referred to 8 Ohms referred to 8 Ohms
100, 20Hz to 20 kHz, 100, 20Hz to 20 kHz, 100, 20Hz to 20 kHz,
referred to 8 Ohms referred to 8 Ohms referred to 8 Ohms

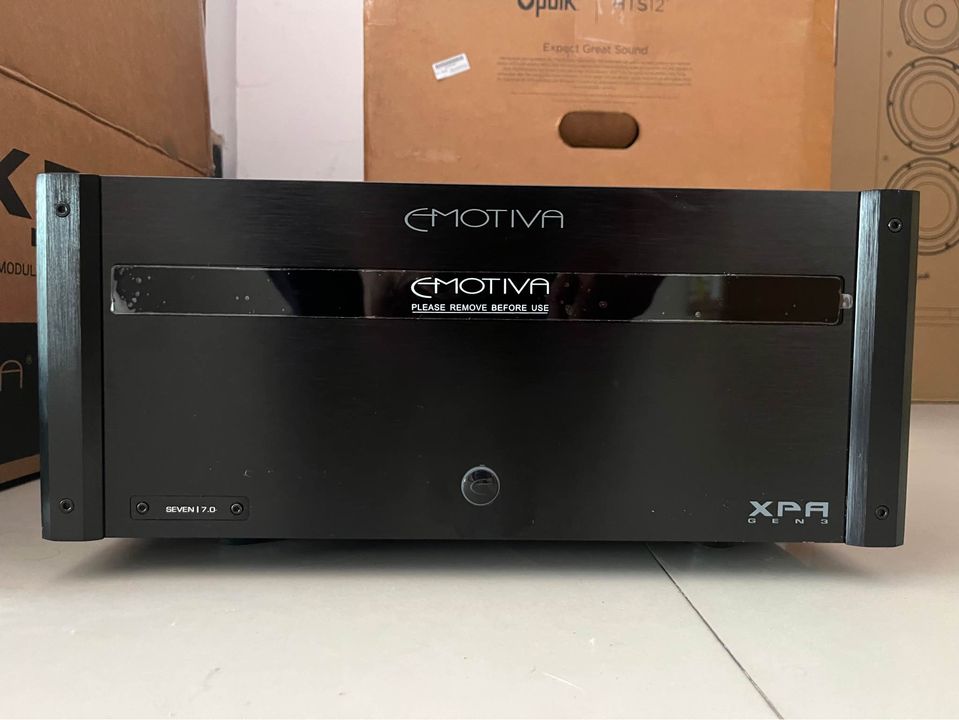

EMOTIVA XPA-7
Audio Specifications

The XPA-7 Gen3 features seven of our High-Powered Single Channel Modules.

Audio Specifications (Seven High-Powered Single Channel Modules):

Power Output:

• 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven

• 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven

• 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven


• 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven

• 200 watts RMS/channel; THD<0.1%; 8 Ohms; ALL SEVEN channels driven

Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB)

Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB

THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms

Signal to Noise Ratio (8 Ohm load):

• > 117 dB; ref FTC rated power; unbalanced input (A-weighted)

• > 91 dB; ref 1 watt; unbalanced input (A-weighted)

Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)

Damping Factor (8 Ohm load): > 500

Input Sensitivity (for rated power; 8 Ohm load): 1.5 V

Gain: 29 dB

Maximum Power Consumption: 2,600 watts.


Note: The values shown refer to the amount of power the amplifier would consume while playing test tones continuously, on all channels, at full power, into a load bank. Therefore they are not at all characteristic of what you would expect when playing music or the sound track from a movie.

Normal audio signals are dynamic, so the amount of power they require from second to second varies widely, and the average is far lower than this. With normal content, even playing very loudly, one of our amplifiers will consume far less power than indicated in the chart, so these values should not be considered to be a circuit requirement for normal operation.

Input Impedance:

• 33 kOhms (balanced)


• 23.5 kOhms (unbalanced)

Input And Output Connections

• Input Connections (High-Powered Single Channel Modules): Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.

• Input Connections (Stereo Modules): 2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable.

• Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts.

Trigger:

• Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required

• Trigger Output: 12 VDC; can drive any load up to 120 mA

Power Requirements

Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected).

Front Panel Controls and Indicators

• Standby: push button (halo ring changes color to indicate Standby or On).

• Status LEDs: one per channel; blue.

• Status LEDs change to red to indicate a fault condition.

Rear Panel Controls

• AC Power switch: rocker switch (switches AC main power).

• Status LEDs switch: disables front panel Status LEDs and dims Standby button halo.

• Input selector switches (one per channel): metal toggle switches; select between balanced and unbalanced inputs.

• Circuit Breaker: press button to reset circuit breaker.

Protection

The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Mechanical

Dimensions:

• 17” wide x 8” high x 19” deep (unboxed; including feet)

• 17” wide x 7” high x 19” deep (unboxed; without feet)

• 24-1/2” wide x 12” high x 24-3/4” deep (boxed)

Weight:

• 53 lbs (unboxed)

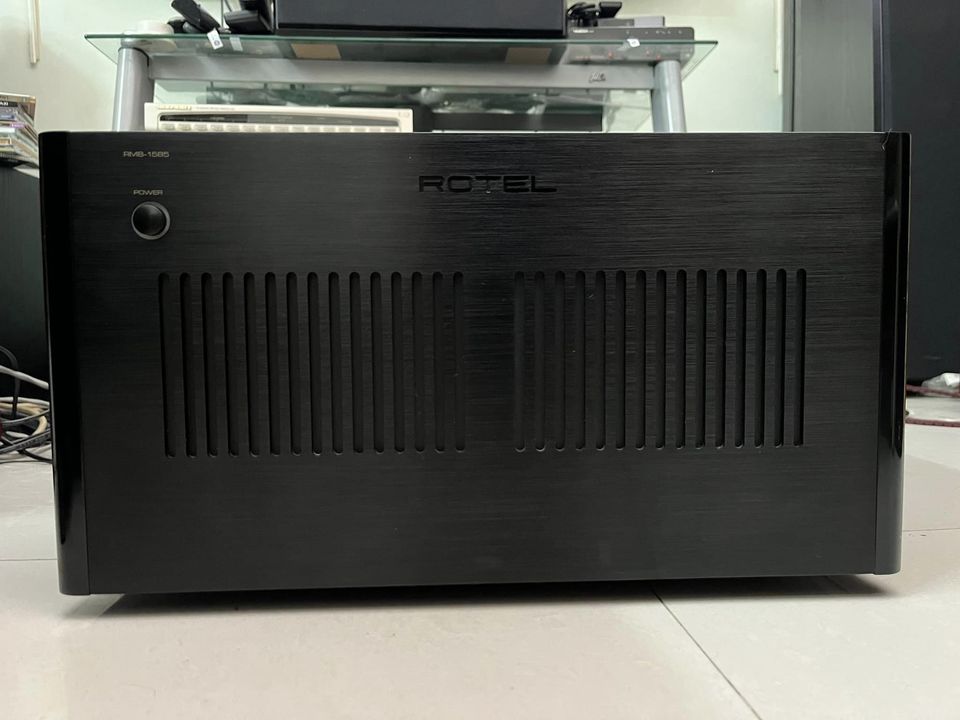

ROTEL RMB-1585
Specification
Continuous Power Output
(20-20kHz, < 0.03%, 8 ohms) 200 watts/channel,
5 channel driven
Total Harmonic Distortion
(20Hz-20kHz, 8 ohms) < 0.03%
Intermodulation Distortion
(60Hz : 7kHz, 4:1) < 0.03%
Frequency Response
(+0.5, –3 dB) 10Hz - 100kHz
Damping Factor
(20-20,000Hz, 8 ohms) 260
Speaker Impedance 4 ohms minimum
Signal to Noise Ratio
(IHF A network) 116 dB
Input Impedance/Sensitivity -
Unbalanced 12k ohms/1.9 volt
Balanced 100k ohms/3.8 volt
Gain 26.5 dB
Power Requirements -
U.S. version 120 volts, 60Hz
European version 230 volts, 50Hz
Power Consumption 1100 watts
Dimensions -
Width x Height x Depth 431 x 237 x 454mm
17 x 9 3/8 x 17 7/8 in
Front Panel Height 5U / 221mm / 8 3/4 in
Weight (net) 36kg / 79.3 lb

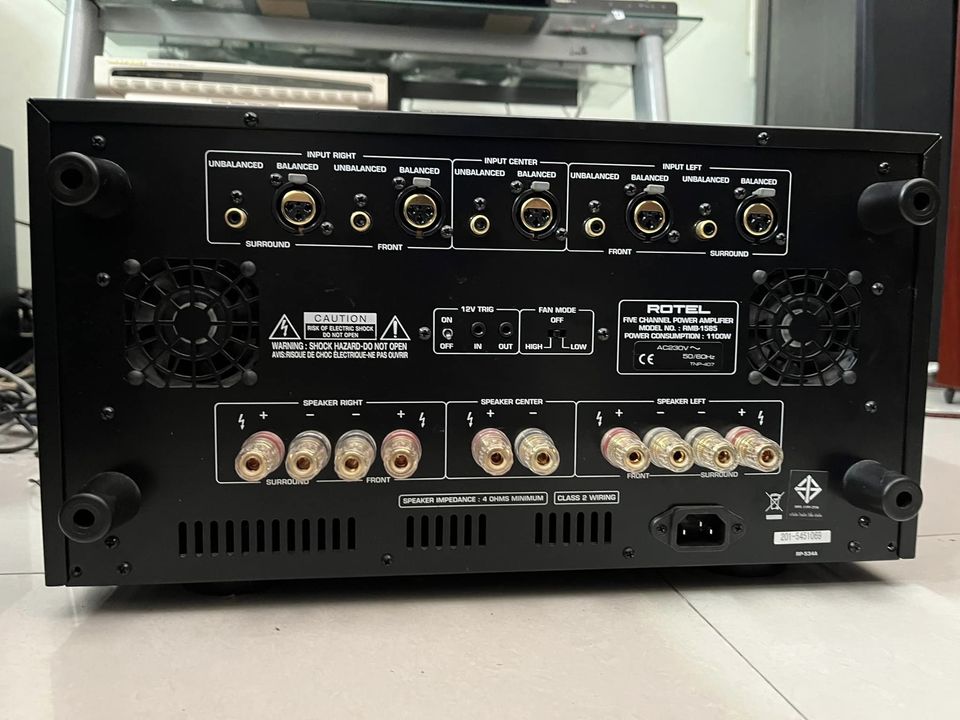

ด้านหลัง
