1. ARAGON 8008X3 สภาพดีราคา 39,990.B
2.Mcintosch MC7106 สภาพดีราคา 54,900.B
3.ROTEL RMB-1585 สภาพดีมีกล่องครบราคา 56,900.B
สนใจติดต่อ 0816623531

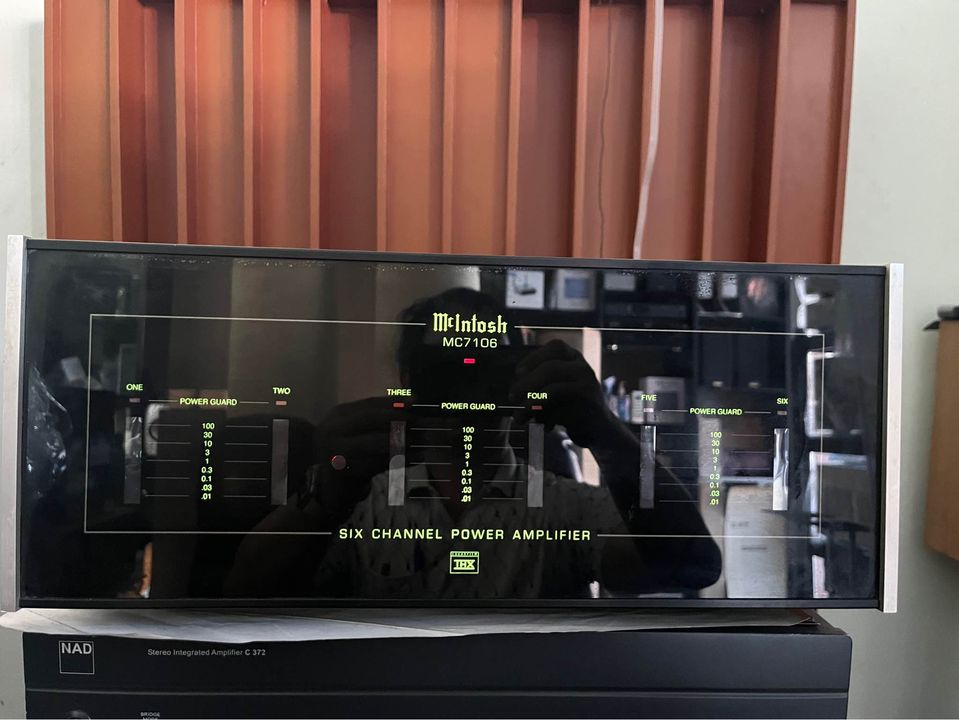

Mcintosch MC7106
SPECIFICATIONS PERFORMANCE LIMITS
Performance limits are the maximum
deviation from perfection permitted for a
Mclntosh instrument. We promise you that
when you purchase an MC7106 from a
Mclntosh franchised dealer, it will be
capable of performance at or better than
these limits.
POWER OUTPUT, SIX CHANNELS
100 watts per channel into 8 ohm loads,
or 160 watts per channel into 4 ohm loads
minimum sine wave continuous average
power output per channel, all channels
operating.
The output RMS voltage is:
28.3V across 8 ohms
25.2V across 4 ohms
POWER OUTPUT,
TWO CHANNELS BRIDGED
320 watts into an 8 ohm load, minimum
sine wave continuous average power output.
The output RMS voltage is:
50.6V across 8 ohms
OUTPUT LOAD IMPEDANCE
8 or 4 ohms, for all six separate channels
8 ohrns, Bridged operation
RATED POWER BAND
20Hz to 20,000Hz
TOTAL HARMONIC DISTORTION
0.005% maximum harmonic distortion at
any power level from 250 mW to rated power
output.
IHF DYNAMIC HEADROOM
8 ohms, 1.8dB
4 ohms, 2.1dB
FREQUENCY RESPONSE
+ 0, -0.25dB from 20Hz to 20,000Hz
+ 0, -3.0dB from 10Hz to 100,000Hz
INPUT SENSITIVITY
1V, (2.5V with Level control at center
detent)
A-WEIGHTED SIGNAL-TO-NOISE RATIO
93dB (113dB below rated output)
INTERMODULATION DISTORTION, SMPTE
0.005% maximum if instantaneous peak
power does not exceed twice the output
power rating.
RATINGS
WIDE BAND DAMPING FACTOR
200 at 8 ohms
100 at 4 ohms
INPUT IMPEDANCE
20,000 ohms
POWER GUARD
Clipping is prevented and THD does not
exceed 2% with up to 14dB overdrive at
1000Hz.
POWER REQUIREMENTS
120V, 50/60Hz, 12A UL/CSA
MECHANICAL
SIZE
Front panel: 17 1/2 inches (44.5cm) wide,
by 7 1/8 inches (18.1cm) high. Depth behind
the front mounting panel is 20 inches
(50.8cm) including clearance for connectors.
Panel clearance required in front of mount-
ing panel is 1 inch (2.54cm).
FINISH
Front panel is glass with gold/teal
nomenclature illumination. Chassis and
chassis cover are black.
WEIGHT
52 pounds (23.6Kg) net,

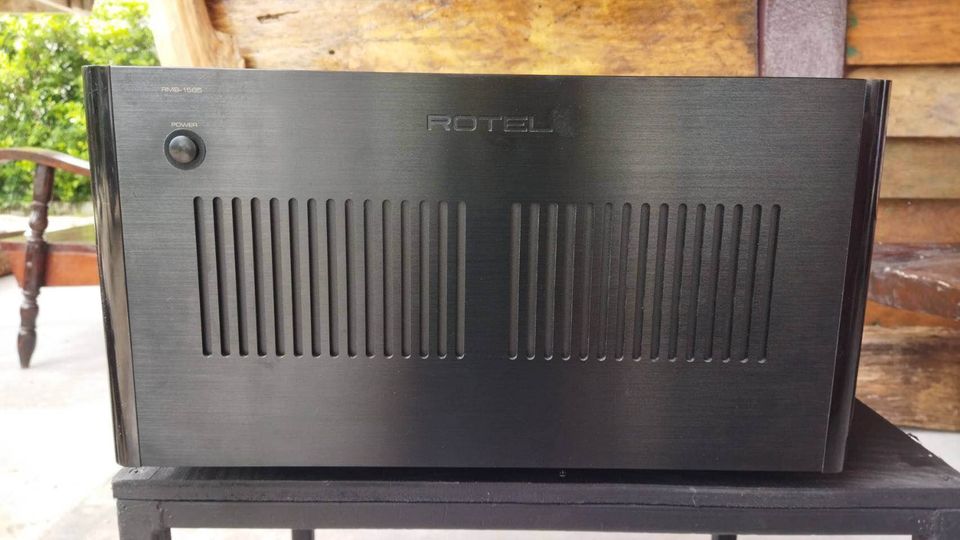

ROTEL RMB-1585
Model RMB-1585
Continuous Power Output
(20-20kHz, < 0.03%, 8 ohms) 200 watts/channel,
5 channel driven
Total Harmonic Distortion
(20Hz-20kHz, 8 ohms) < 0.03%
Intermodulation Distortion
(60Hz : 7kHz, 4:1) < 0.03%
Frequency Response
(+0.5, –3 dB) 10Hz - 100kHz
Damping Factor
(20-20,000Hz, 8 ohms) 260
Speaker Impedance 4 ohms minimum
Signal to Noise Ratio
(IHF A network) 116 dB
Input Impedance/Sensitivity -
Unbalanced 12k ohms/1.9 volt
Balanced 50k ohms/3.8 volt
Gain 26.5 dB
Power Requirements -
U.S. version 120 volts, 60Hz
European version 230 volts, 50Hz
Power Consumption 800 watts
Dimensions -
Width x Height x Depth 431 x 237 x 454mm
17 x 9 3/8 x 17 7/8 in
Front Panel Height 5U / 221mm / 8 3/4 in
Weight (net) 36kg / 79.3 lb
