1.ROTEL RB-1592 สภาพดีราคา 45,900.B
2.ROTEL RMB-1585 สภาพดีราคา 56,900.B
สนใจติดต่อ 0816623531

SPECIFICATIONS RB-1592

Rotel has been engineering and manufacturing power amplifiers for decades.The RB-1592 presented here is the culmination of everything we have learned to date about amplifier design and sound quality. It showcases our experience in Class AB design with the implementation of select grade components throughout and over-sized power supplies featuring large toroidal transformers.



Rugged, stable, and natural-sounding, the RB-1592 is the ideal foundation for a high performance music system. Features include 12-volt triggers for remote operation and an IEC detachable power cord. The rated output is 2 x 380 watts into 8 ohms.



Continuous Power Output
(20-20k Hz, <0.3% THD, 8ohms)


380watts/ch into 8 ohms
700watts/ch into 4 ohms

Total Harmonic Distortion
(20Hz - 22Hz, 8 ohms)


<0.03%

Intermodulation Distortion
(60Hz:7kHz, 4:1)


<0.03%

Damping Factor
(20Hz-20Hz, 8 ohms)


1000

Input Impedance/Sensitivity


12 kohms/2.6 volts

Amplifier Gain


26.5dB

Frequency Response


10Hz - 100kHz

S/N Ratio (IHF A)


125dB

Crosstalk/Separation


>70dB

Speaker Impedance


4 ohms minimum

Power Requirements


USA: 120 volts, 60Hz
Europe: 230 volts, 50Hz

Power Consumption


800 watts
Idle: 70 watts

Standby


<0.5 watts

Dimensions (W x H x D)


431 x 237 x 410 mm

Weight (net)


40Kgs

Panel Height


5U/221mm

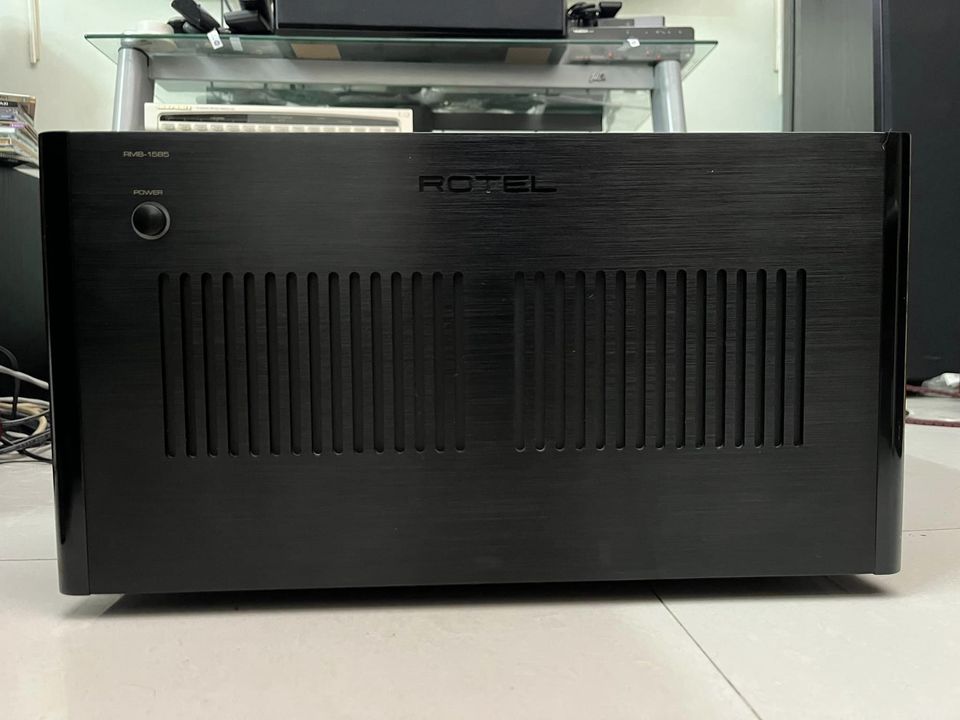

ROTEL RMB-1585


หน้าแรก สินค้า Integrated Amp ROTEL RMB-1585 (SIVER BLACK)

ROTEL RMB-1585 (SIVER BLACK)
now
ROTEL RMB-1585 (SIVER BLACK)
฿119000.00
ROTEL RMB-1585 (SIVER BLACK)
จำนวน

หมวดหมู่ : Integrated Amp รหัสสินค้า : 002011

รายละเอียดสินค้า ROTEL RMB-1585 (SIVER BLACK)

SPECIFICATIONS RMB-1585

Category: MULTICHANNEL POWER AMPLIFIERS

Model: RMB-1585

The RMB-1585, Rotel’s new flagship theater amplifier, provides both the massive power and sonic sophistication required by the finest home theater systems. With five channels, each capable of producing 200 continuous watts each into 8 ohm loads (a full kilowatt of output power!), the RMB-1585 masters any A/V system regardless of speaker load or room size.

But it isn’t just pure output power that distinguishes the RMB-1585. It’s the ability to reproduce both the dynamics of a Hollywood blockbuster and the musical nuances of acoustic instruments that sets it apart. Where does this balance come from? It’s a direct result of Rotel’s celebrated Balanced Design Concept in which circuit topology and parts selection meld in the pursuit of sonic excellence.



Model


RMB-1585

Continuous Power Output
(20-20kHz, < 0.03%, 8 ohms)


200 watts/channel,
5 channel driven

Total Harmonic Distortion
(20Hz-20kHz, 8 ohms)


< 0.03%

Intermodulation Distortion
(60Hz : 7kHz, 4:1)


< 0.03%

Frequency Response
(+0.5, –3 dB)


10Hz - 100kHz

Damping Factor
(20-20,000Hz, 8 ohms)


260

Speaker Impedance


4 ohms minimum

Signal to Noise Ratio
(IHF A network)


116 dB

Input Impedance/Sensitivity


-

Unbalanced


12k ohms/1.9 volt

Balanced


50k ohms/3.8 volt

Gain


26.5 dB

Power Requirements


-

U.S. version


120 volts, 60Hz

European version


230 volts, 50Hz

Power Consumption


800 watts

Dimensions


-

Width x Height x Depth


431 x 237 x 454mm
17 x 9 3/8 x 17 7/8 in

Front Panel Height


5U / 221mm / 8 3/4 in

Weight (net)


36kg / 79.3 lb
