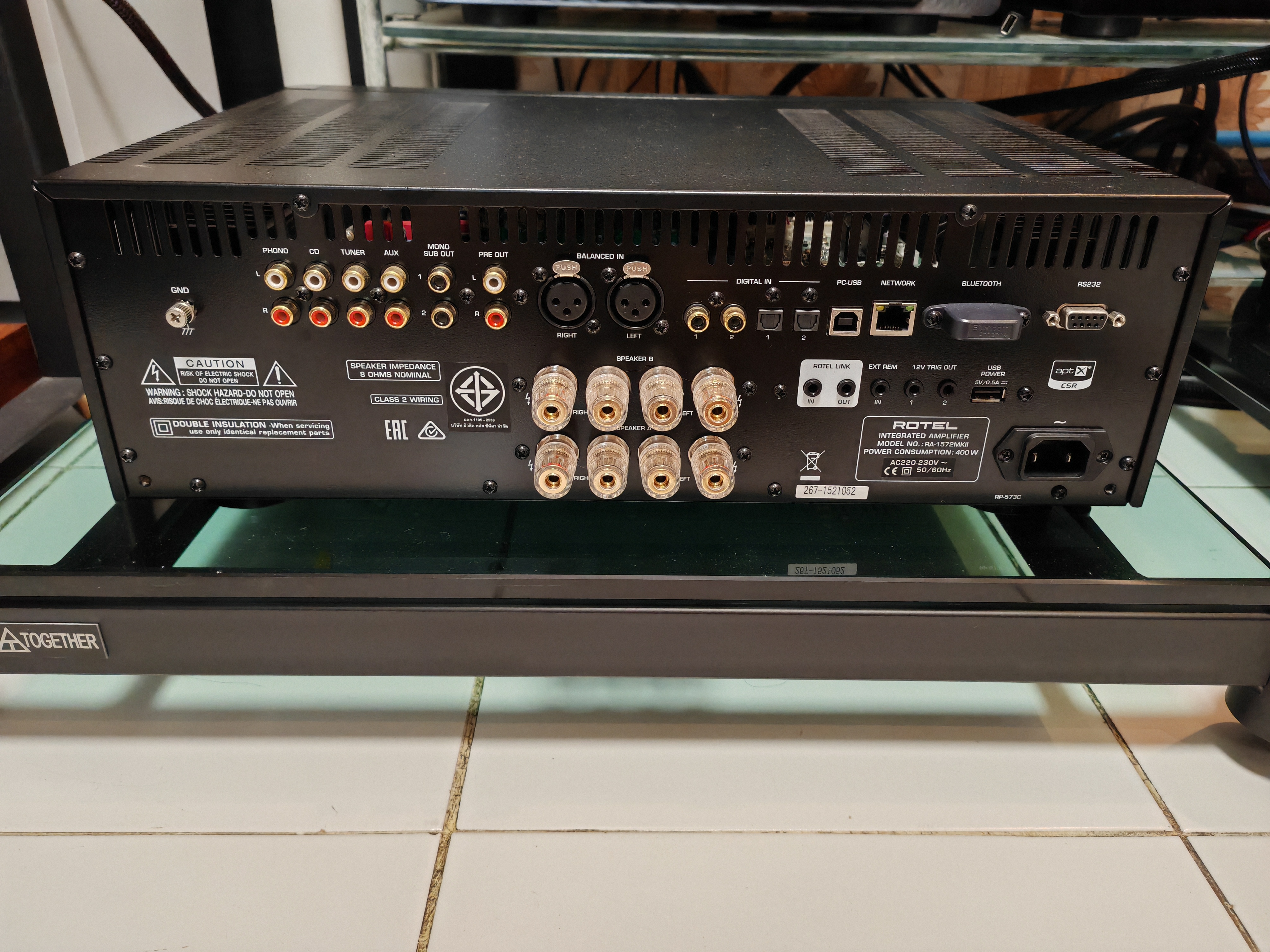

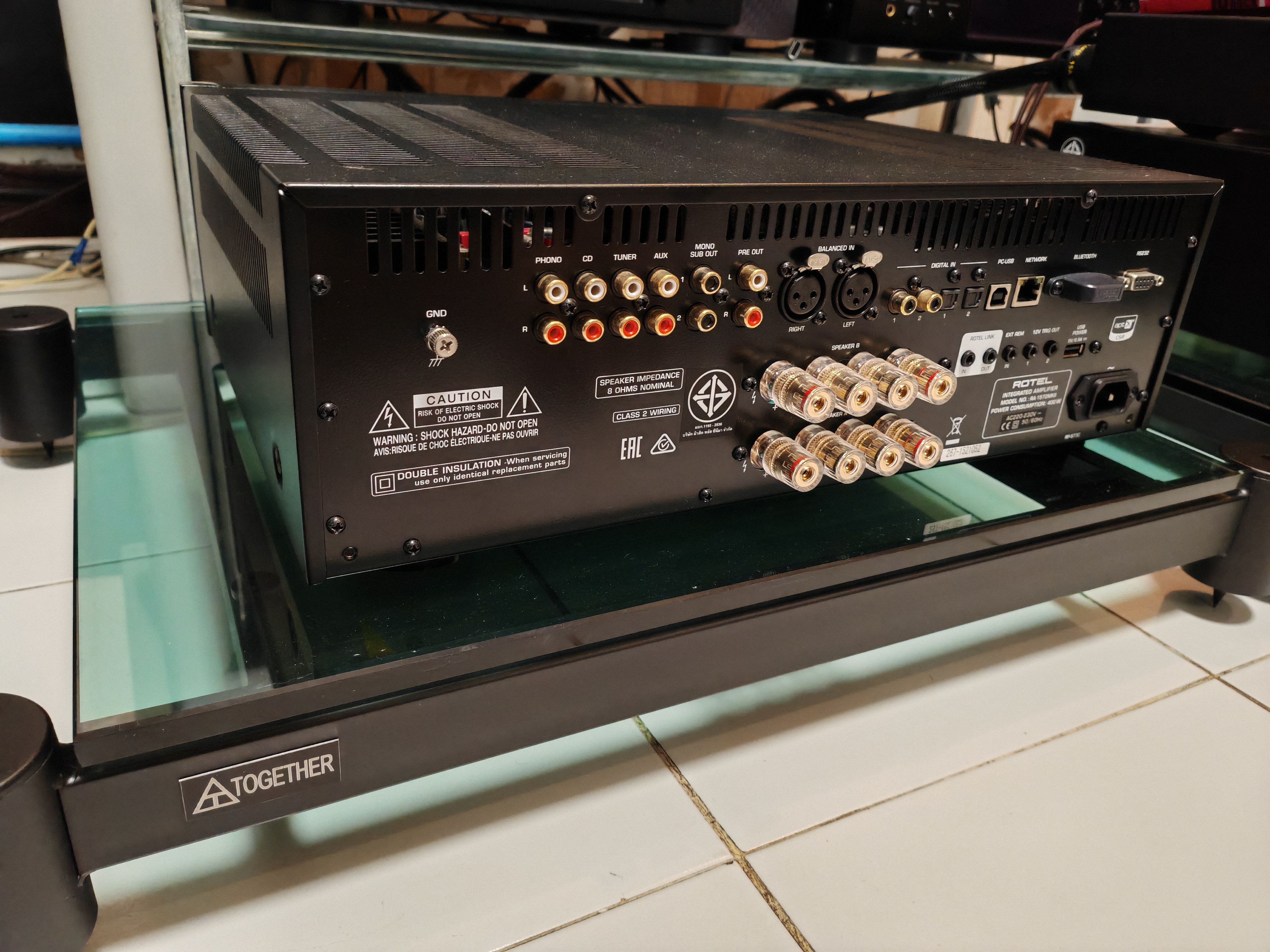

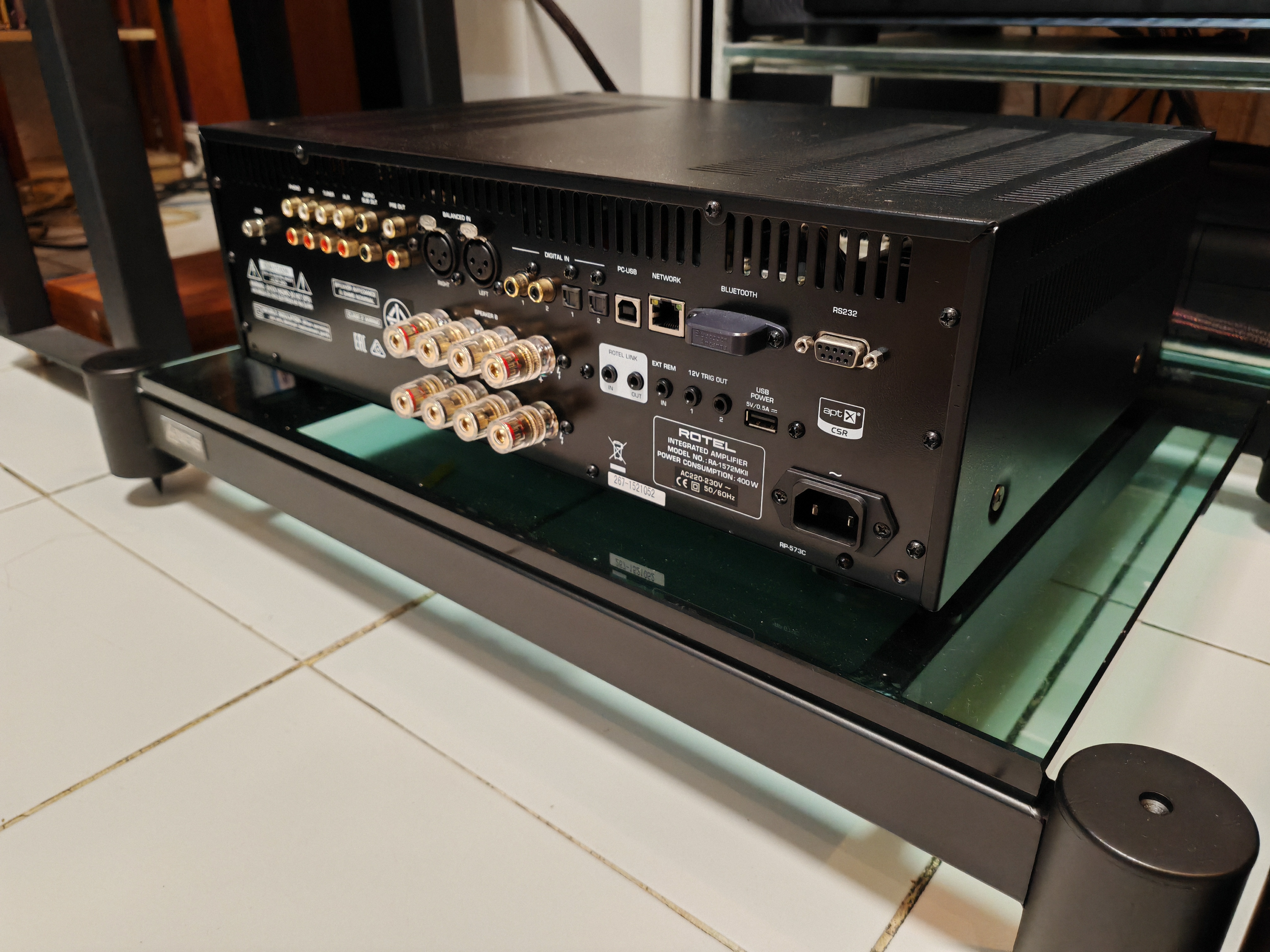

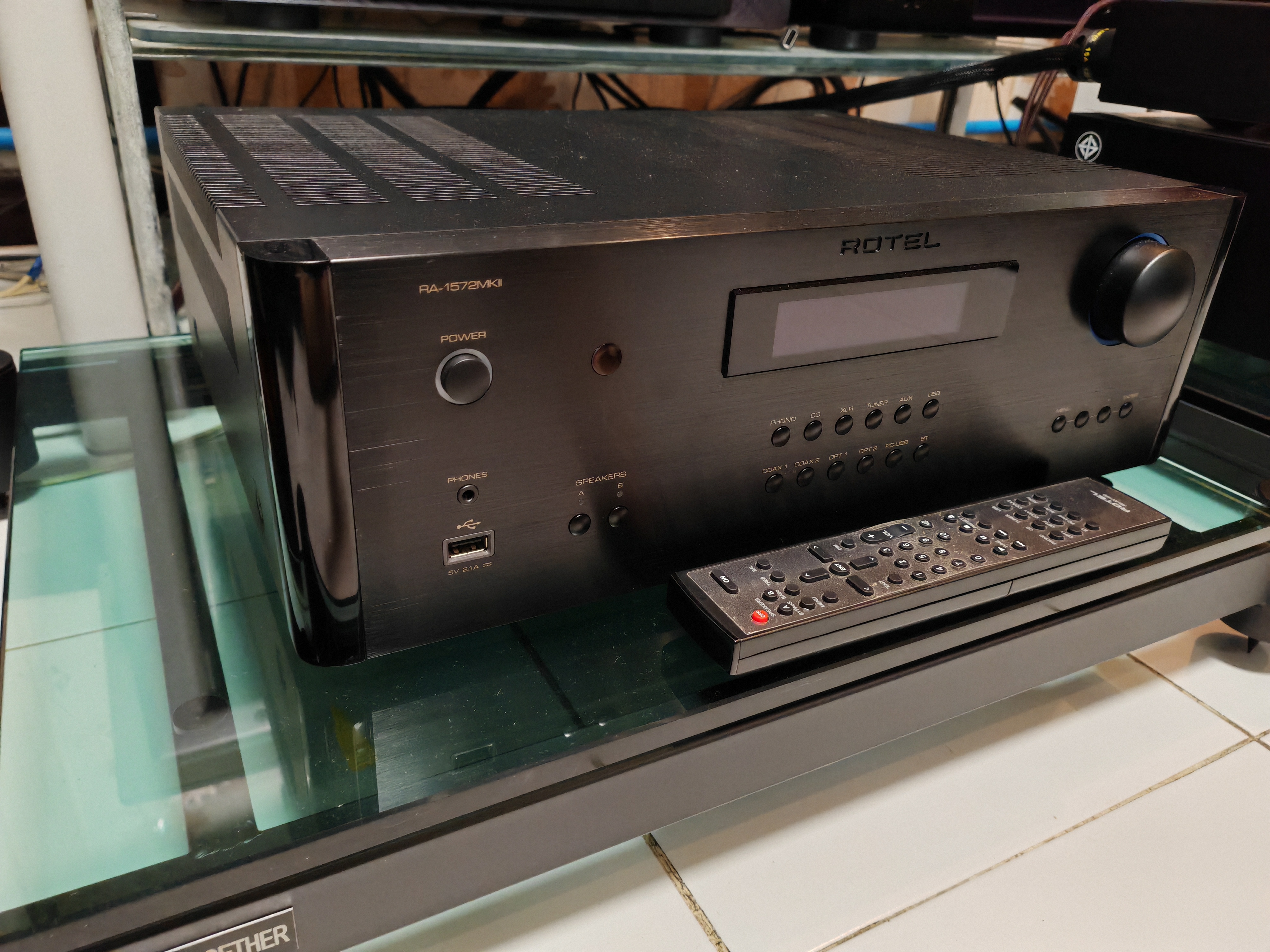

ROTEL RA1572MKll แอมป์รุ่นใหญ่ จากญี่ปุ่น รายละเอียดดี สภาพสวย ใหม่ อุปกรณ์ครบกล่อง มาลองได้ นวมินทร์ 68 ราคา 36500
*** line id 0891046614​*​**
Specification

Maximum Power Output 200W/Ch (4Ω)
Continuous Power Output 120W/Ch (8Ω)
Total Harmonic Distortion (THD) <0.018%
Frequency Response Line Level Inputs: 10Hz - 100kHz, ±0.5dB
Digital Inputs: 10Hz - 90kHz, ±2dB
Phono Input: 20Hz - 20kHz, ±0.5dB
S/N Ratio (IHF "A" Weighted) Line Level Inputs: 100dB
Digital Inputs: 100dB
Phono Input: 80dB
Power Requirements 230V, 50Hz
Power Consumption 400W
Standby Power Consumption <0.5W
Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
Damping Factor 300
Input Sensitivity Line Level Inputs (RCA): 270mV
Line Level Inputs (XLR): 440mV
Digital Inputs: 0 dBFs
Phono Input (MM): 2.1mV
Input Impedance Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V
Phono Input: 32mV
Preout Level 1.5V
Output Impedance 470Ω
PC-USB USB Audio Class 1 (up to 24-bit/192kHz)
USB Audio Class 2 (up to 24-bit/384kHz)*
*Driver installation required MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
Coax/Optical Digital Input Signals SPDIF LPCM (Up to 24-bit/192kHz)
Dimensions (W × H × D) 431 × 144 × 358mm
17" × 5.7" × 14.1"
Front Panel Height 3U / 132.6mm (5.25")
Net Weight 13.63kg (30.05lbs.)
