1.Magnet Medusa 7 CH สภาพดีราคาออกใหม่แสนกว่าบาทขายมือสองเพียง 49,990.B
2.ROTEL RMB-1585 สภาพดีมีกล่องครบราคา 57,900.B
3.ANTHEM MCA 525 V1สภาพดีราคา 76,900.B
สนใจติดต่อ 0816623531

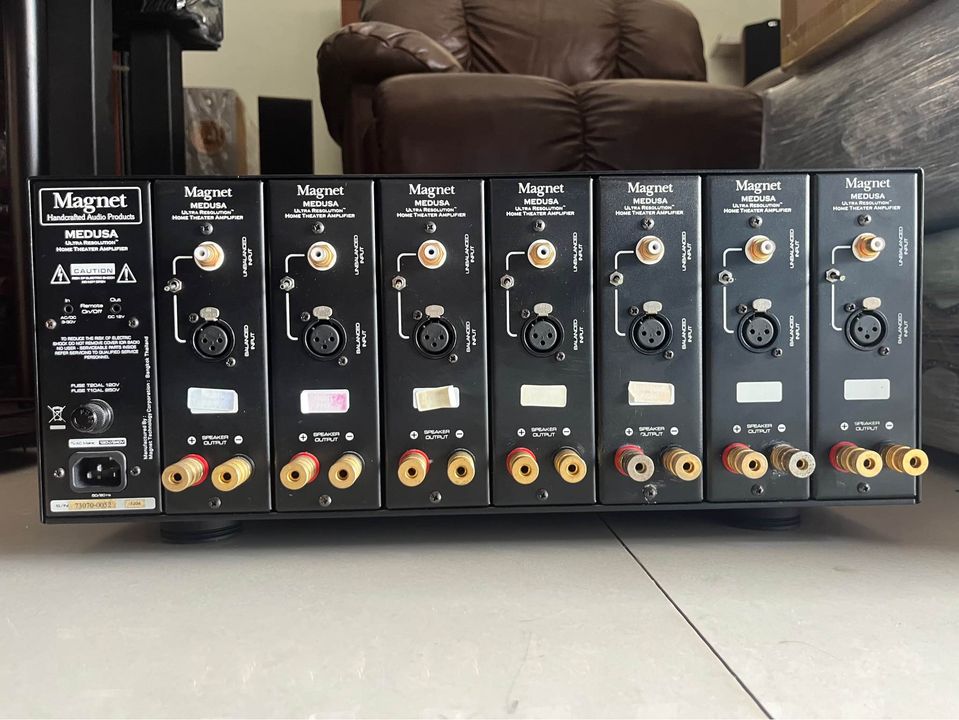

Magnet Medusa 7 CH


MAGNET MEDUSA 7 CHANNEL

ข้อมูลทั่วไป / Overview:

MEDUSA Ultra Resolution Home Theater Amplifer
MEDUSA power amplifer, Multi-channel type, is designed for a home theater system mainly. MEDUSA has Seven Channel and Maximum power output 250 Watt per channel at 6 Ohm Load, and designed Seven Channel are independently. MEDUSA's Power amplifier has concentrated design pure and brilliant sound concept, which support all style of music with High performance. All Conponents are High grade in used. In MEDUSA's Power Supply has used Three Toroidal Transformer which design Secondary coil of Each power output independently to reduce "Inter-Channel Crosstalk Capacitor Filler" and Bicap by used Hi grade of Capacitor of Poly Propylene Film which reduce " Series Resistance (ESR) ". MEDUSA has protect system such as case "Load Shorted", "DC voltage output is over-rage." and "detection high-temperature"

ข้อมูลจำเพาะ / Specifications:

Number of Output Channels 7 Channel
Power output 250 WATT(RMS) per channel @ 6 Ohm, THD : 0.002%
200 WATT(RMS) per channel @ 8 Ohm, THD : 0.001%
Total harmonic distortion THD+Noise less then 0.05% @ 20-20,000 Hz
less then 0.01% @ 1kHz
Frequency response 20-20,000 Hz (+0,-0.3dB)
Input Impedance 25 kOhm
Dimensions Width : 500 mm. Height : 217.5 mm. Depth : 538.5 mm.
Weight Net Weight : 59.5 kg Shipping Weight : 62.6 kg

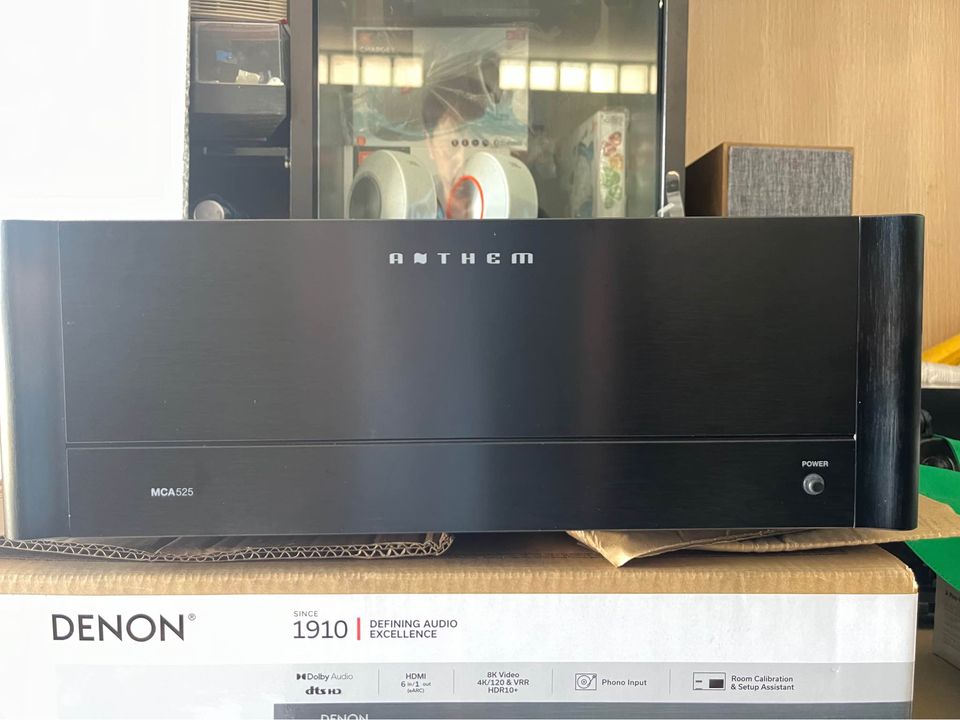

ANTHEM MCA 525 V1
ANTHEM MCA 525
Delivers lower THD (Total Harmonic Distortion) for cleaner, pure sound and lower noise
Completely redesigned for improved audio performance and reliability
Higher current output for lower distortion
Cosmetic match for AVM 60 A/V Preamplifier-Processor
Improved Advanced Load Monitoring system
8 bipolar output devices per channel for less stress on each device
Less than 2 watts standby power consumption
Crafted in Canada

Anthem : MCA 5255-channel power amplifier; 225 watts per channel continuous power into 8 ohms.

Designed to match, engineered for power.New MCA multi-channel amplifiers are Crafted in Canada and perfectly match the new AVM 60 processor & MRX receivers.

To complement the NEW AVM 60 A/V Processor, Anthem introduces the new MCA 525, 325 and 225 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability. The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.

Like all Anthem products the MCA 525, MCA 325 and MCA 225, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.

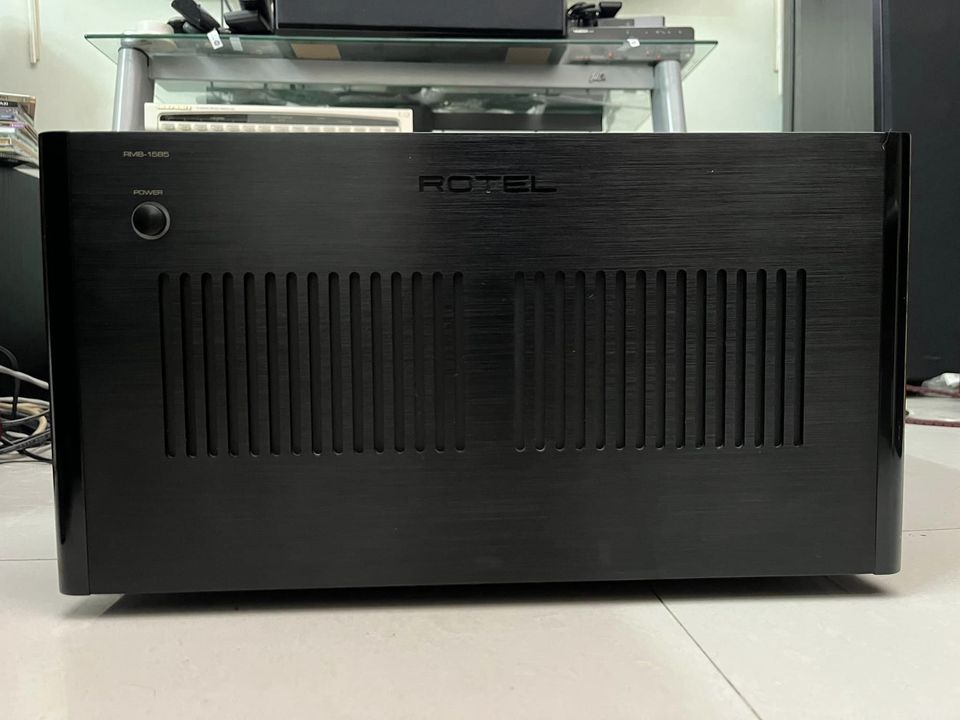

ROTEL RMB-1585
Model


RMB-1585

Continuous Power Output
(20-20kHz, < 0.03%, 8 ohms)


200 watts/channel,
5 channel driven

Total Harmonic Distortion
(20Hz-20kHz, 8 ohms)


< 0.03%

Intermodulation Distortion
(60Hz : 7kHz, 4:1)


< 0.03%

Frequency Response
(+0.5, –3 dB)


10Hz - 100kHz

Damping Factor
(20-20,000Hz, 8 ohms)


260

Speaker Impedance


4 ohms minimum

Signal to Noise Ratio
(IHF A network)


116 dB

Input Impedance/Sensitivity


-

Unbalanced


12k ohms/1.9 volt

Balanced


50k ohms/3.8 volt

Gain


26.5 dB

Power Requirements


-

U.S. version


120 volts, 60Hz

European version


230 volts, 50Hz

Power Consumption


800 watts

Dimensions


-

Width x Height x Depth


431 x 237 x 454mm
17 x 9 3/8 x 17 7/8 in

Front Panel Height


5U / 221mm / 8 3/4 in

Weight (net)


36kg / 79.3 lb
