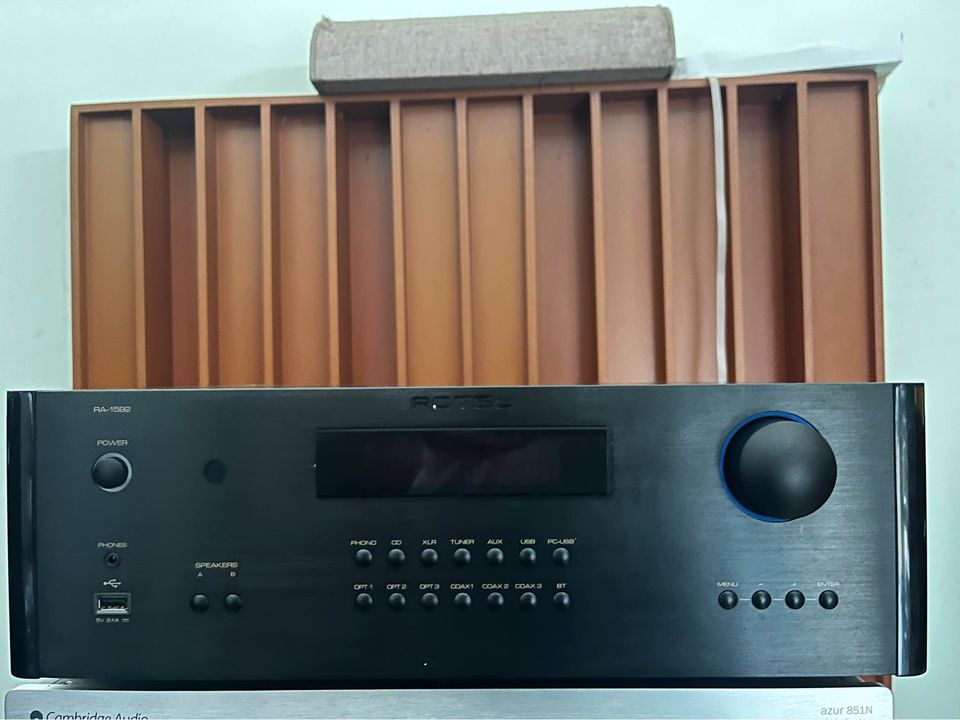

RA-1592 MK I
Specification
Continuous Power Output 200W/Ch (All channels driven, 8Ω)
Total Harmonic Distortion (THD) (20Hz–20kHz) <0.03%
Frequency Response Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 90kHz ±2dB
Phono Input: 20Hz - 20kHz ±0.5dB
S/N Ratio (IHF "A" Weighted) Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB
Standby Power Consumption <0.5W
Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
Power Requirements 120V, 60Hz
Power Consumption 500W
Damping Factor 600
Speaker Impedance 4Ω minimum
Input Sensitivity Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM):
5.2mV
Input Impedance Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload Line Level Inputs (RCA):
3.5V
Line Level Inputs (XLR):
5.5V
Phono Input: 52mV
Preout Level
1.9V
Output Impedance 100Ω
Tone Controls ±12dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals LPCM (Up to 24-bit/192kHz)
PC-USB USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)
DSD and DoP support
Dimensions (W × H × D) 431 × 144 × 425mm
17" × 5.7" × 16"
Front Panel Height 3U /
132.6mm (5.25")
Net Weight
16.8kg (37lbs.)
