Continuous effective output 55W+55W (8Ω, both ch operation)
65W/65W (8Ω, single ch operation)
Total harmonic distortion 0.03% or less (8Ω, 55W)
Modulation distortion rate 0.04% or less (8Ω, 55W, 70Hz: 7kHz=4:1)
Power band width 5Hz to 50kHz -3dB (0.03%)
Input sensitivity/impedance 600mV/50kΩ
Residual noise 0.5mV or less
Damping factor 40 (8Ω, 20Hz to 20kHz)
Accessory equipment Variable attenuator
Speaker switching switch
headphone jack
AC outlet (3 lines)

Standard output voltage Pre out:600mV
Rec out:100mV
Maximum output voltage Pre out:5V
Output impedance Pre out: about 100Ω
Rec out: about 100Ω
Frequency characteristics 10Hz to 50kHz -1dB (Aux1)
Total harmonic distortion 0.03% or less (Aux1, 1kHz, 1V)
Input sensitivity/impedance Phono1: 2.2mV/50kΩ, 65kΩ, 90kΩ
Phono2:2.2mV/65kΩ
Tuner: 100mV (with level set) / 50kΩ
Aux1, 2:100mV/150kΩ
SN ratio Phono 1, 2:63dB or more
Tuner, Aux 1, 2:80dB or more
Maximum allowable input Phono: 300mV or more (1kHz, RMS)

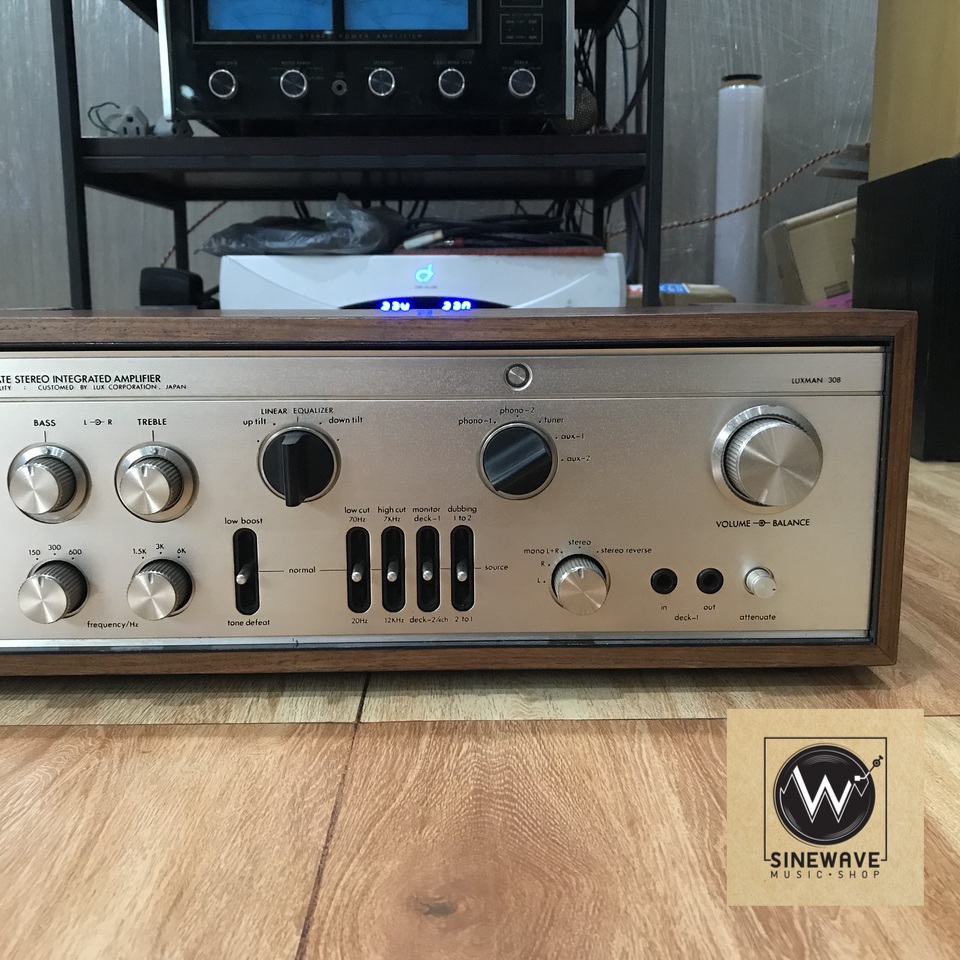

Tone control LUX method NF type curved point frequency switching
Low frequency curved point: 150Hz, 300Hz, 600Hz
High frequency curved point: 1.5kHz, 3kHz, 6kHz
Filter Low cut: 20Hz, 70Hz (-6dB/oct)
High cut: 7kHz, 12kHz (-6dB/oct)
Low boost 70Hz
Liniaikoizer (1kHz standard)
100Hz 10kHz
up tilt:

down tilt: -1.5dB
-3dB
+1.5dB
+3dB +1.5dB
+3dB
-1.5dB
-3dB
Accessory equipment Monitor switch
Dubbing switch
Input impedance switching
DIN connector

Used semiconductor
Transistor:







Diode:

Zener diode:
Barista: 2SC1222x12
2SA640x8
2SC853x1
2SC1080x2
2SA680x2
2SC1161x2
2SA653x2
2SC1103Ax4
SRIK-4x4
5B3x1
WZ-120x1
SV-03x2
KB-165x2
Power supply voltage AC100V, 50Hz/60Hz
Power consumption 200W (8Ω simultaneous load at maximum output)
External dimensions Width 485 x height 165 x depth 300mm
Weight 12.5kg
