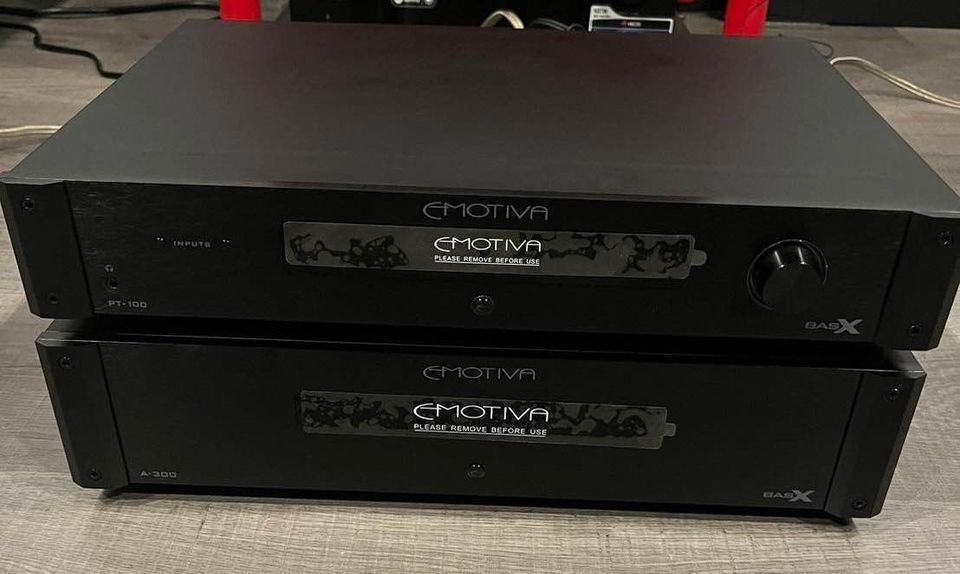

EMOTIVA PT-100+A300
Power Output (both channels driven):
150 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
300 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Dimensions:
17” wide x 4” high x 15.5” deep (not including connectors).
21-1/2” wide x 8” high x 21” deep (boxed).
Weight:
25.2 lbs (unboxed)
Specifications
Type: Solid-state stereo preamplifier with FM tuner, DAC and MM/MC phonostage
Analog Inputs
2 pairs – stereo analog line level inputs (CD, Aux).
1 pair – stereo phono inputs (switchable; moving magnet or moving coil).
1 tuner – FM (with external antenna input; 50 station presets).
Digital Inputs
Coax (S/PDIF); 24-bit/192kHz.
Optical (Toslink); 24-bit/192kHz.
USB (DAC input); 24-bit/96khZ; no drivers required.
Bluetooth receiver (requires optional AptX Bluetooth dongle).
Outputs
1 pair – stereo main output; stereo, unbalanced.
2 – summed full range outputs (for connecting one or two subwoofers).
1 – stereo headphone output (front panel).
Analog Performance (line level)
Maximum Output Level: 4 VRMS
Frequency Response: 5 Hz to 50 kHz +/- 0.04 dB.
THD + Noise: < 0.0015% (A-weighted).
IMD: < 0.004% (SMPTE).
S/N Ratio: > 115 dB.
Crosstalk: < 90 dB.
Analog Performance (Phono)
Frequency Response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve.
THD+Noise: < 0.015% (MM; A-weighted); < 0.06% (MC; A-weighted).
S/N Ratio: > 90 dB (MM); > 68 dB (MC).
Digital Performance
Frequency response: 5 Hz to 20 kHz +/- 0.15 dB (44kHz sample rate).
Frequency response: 5 Hz to 80 kHz +/- 0.25 dB (192kHz sample rate).
THD + Noise: < 0.003% (A-weighted; all sample rates).
IMD: < 0.007% (SMPTE).
S/N Ratio: > 110 dB.
Trigger
12 VDC trigger output.
Power Requirements
115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
Controls and Indicators
Power: rocker switch; rear panel.
Standby: one front panel push button; halo ring changes color to indicate status.
Two front panel pushbuttons: Input Select; menu operation.
One front panel knob: Volume; Tuning; menu operation.
Display: high visibility blue alphanumeric VFD display (dimmable).
Remote Control
Compact full-function infrared remote control.
Menu and Control System
Simplified, highly intuitive menu system.
(Includes Setup options, Bass, Treble, and Balance controls).
Dimensions: 17" x 2.625" x 12.5" (WxHxD).
Weight: 9 lbs
Power Output (both channels driven):
150 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
300 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Dimensions:
17” wide x 4” high x 15.5” deep (not including connectors).
21-1/2” wide x 8” high x 21” deep (boxed).
Weight:
25.2 lbs (unboxed)
Specifications
Type: Solid-state stereo preamplifier with FM tuner, DAC and MM/MC phonostage
Analog Inputs
2 pairs – stereo analog line level inputs (CD, Aux).
1 pair – stereo phono inputs (switchable; moving magnet or moving coil).
1 tuner – FM (with external antenna input; 50 station presets).
Digital Inputs
Coax (S/PDIF); 24-bit/192kHz.
Optical (Toslink); 24-bit/192kHz.
USB (DAC input); 24-bit/96khZ; no drivers required.
Bluetooth receiver (requires optional AptX Bluetooth dongle).
Outputs
1 pair – stereo main output; stereo, unbalanced.
2 – summed full range outputs (for connecting one or two subwoofers).
1 – stereo headphone output (front panel).
Analog Performance (line level)
Maximum Output Level: 4 VRMS
Frequency Response: 5 Hz to 50 kHz +/- 0.04 dB.
THD + Noise: < 0.0015% (A-weighted).
IMD: < 0.004% (SMPTE).
S/N Ratio: > 115 dB.
Crosstalk: < 90 dB.
Analog Performance (Phono)
Frequency Response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve.
THD+Noise: < 0.015% (MM; A-weighted); < 0.06% (MC; A-weighted).
S/N Ratio: > 90 dB (MM); > 68 dB (MC).
Digital Performance
Frequency response: 5 Hz to 20 kHz +/- 0.15 dB (44kHz sample rate).
Frequency response: 5 Hz to 80 kHz +/- 0.25 dB (192kHz sample rate).
THD + Noise: < 0.003% (A-weighted; all sample rates).
IMD: < 0.007% (SMPTE).
S/N Ratio: > 110 dB.
Trigger
12 VDC trigger output.
Power Requirements
115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).
Controls and Indicators
Power: rocker switch; rear panel.
Standby: one front panel push button; halo ring changes color to indicate status.
Two front panel pushbuttons: Input Select; menu operation.
One front panel knob: Volume; Tuning; menu operation.
Display: high visibility blue alphanumeric VFD display (dimmable).
Remote Control
Compact full-function infrared remote control.
Menu and Control System
Simplified, highly intuitive menu system.
(Includes Setup options, Bass, Treble, and Balance controls).
Dimensions: 17" x 2.625" x 12.5" (WxHxD).
Weight: 9 lbs
