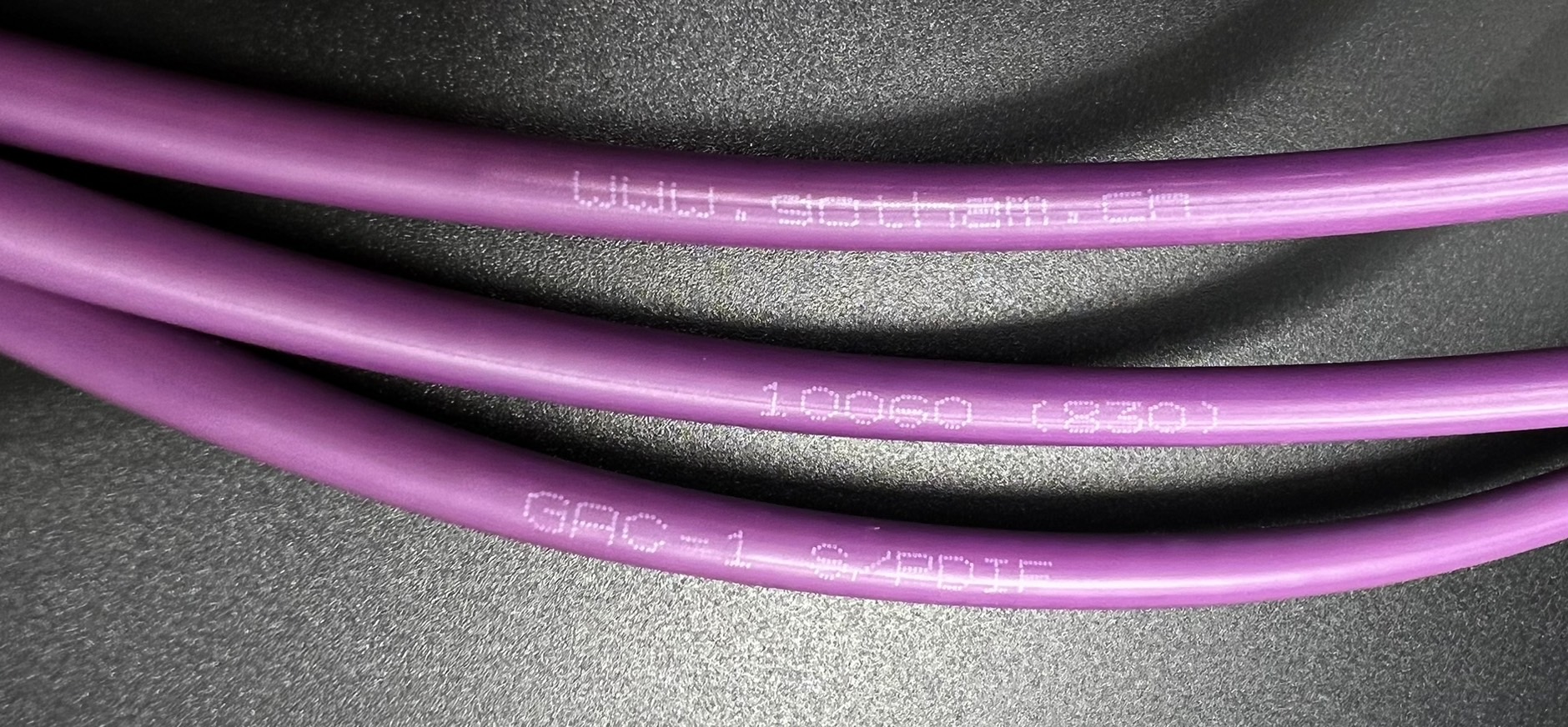

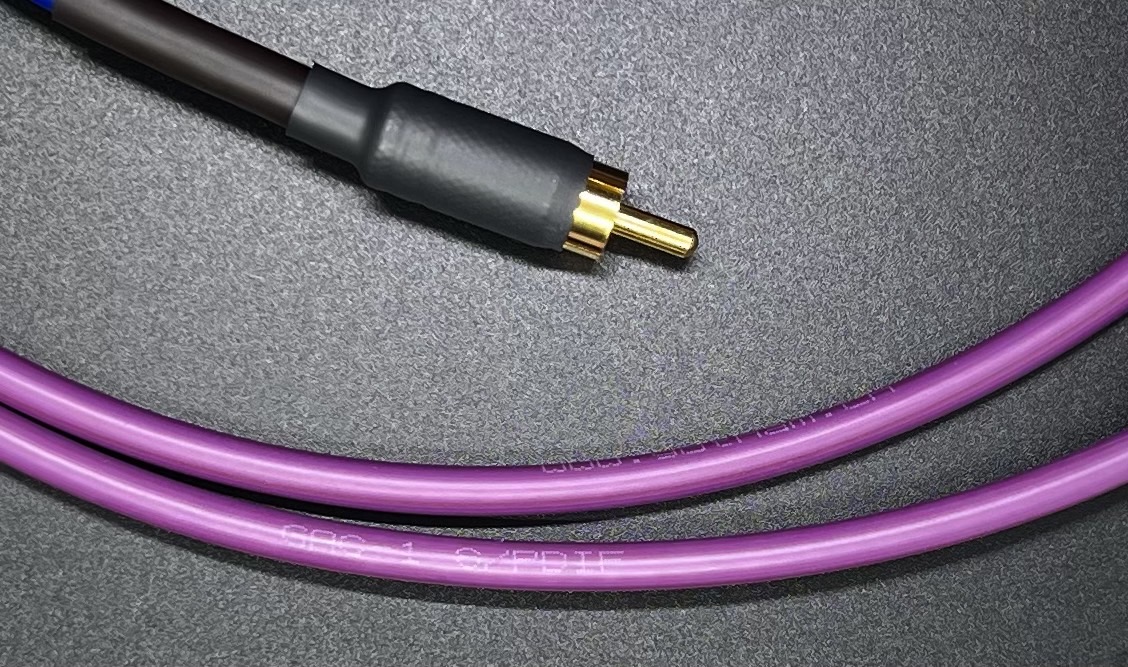

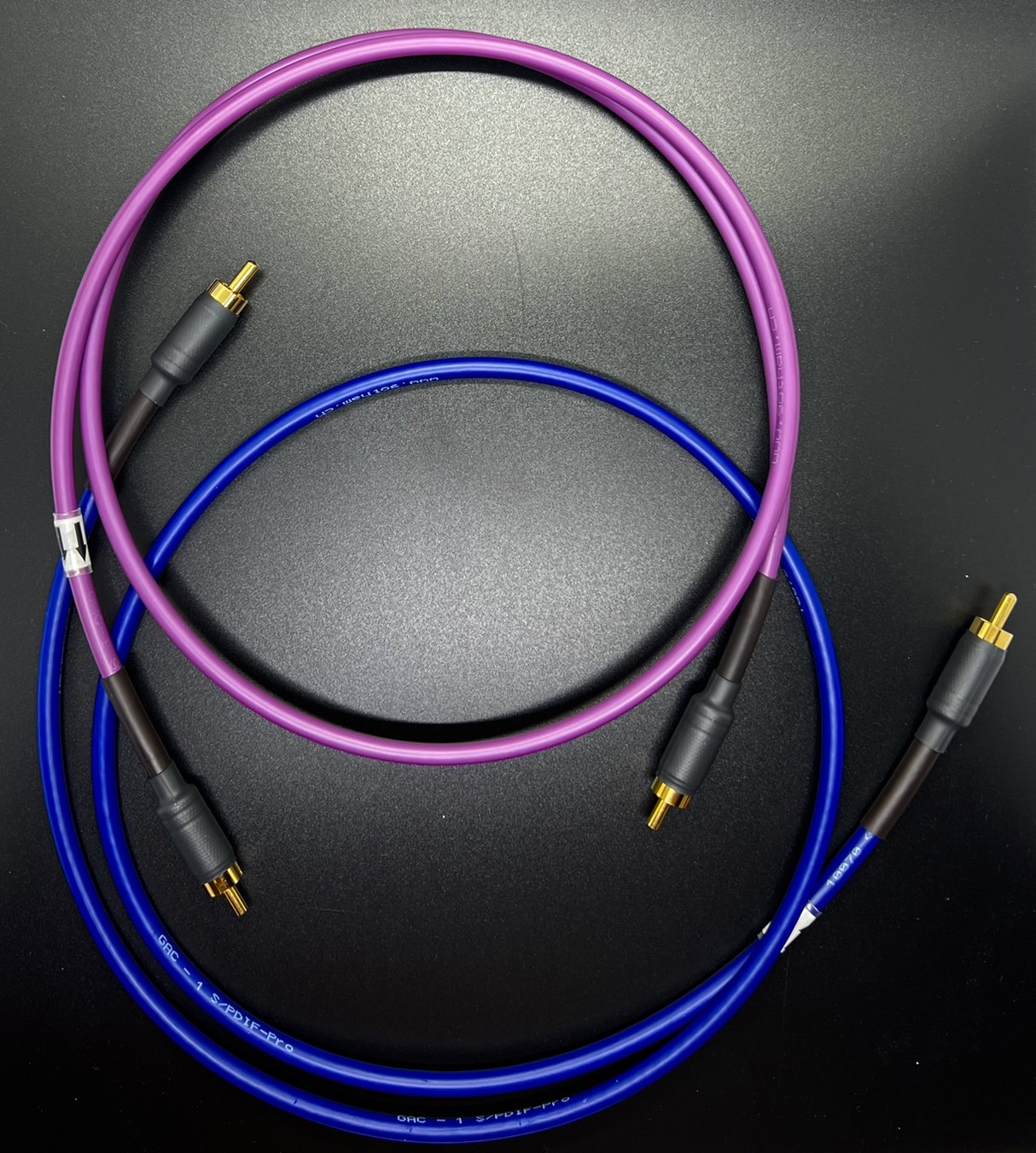

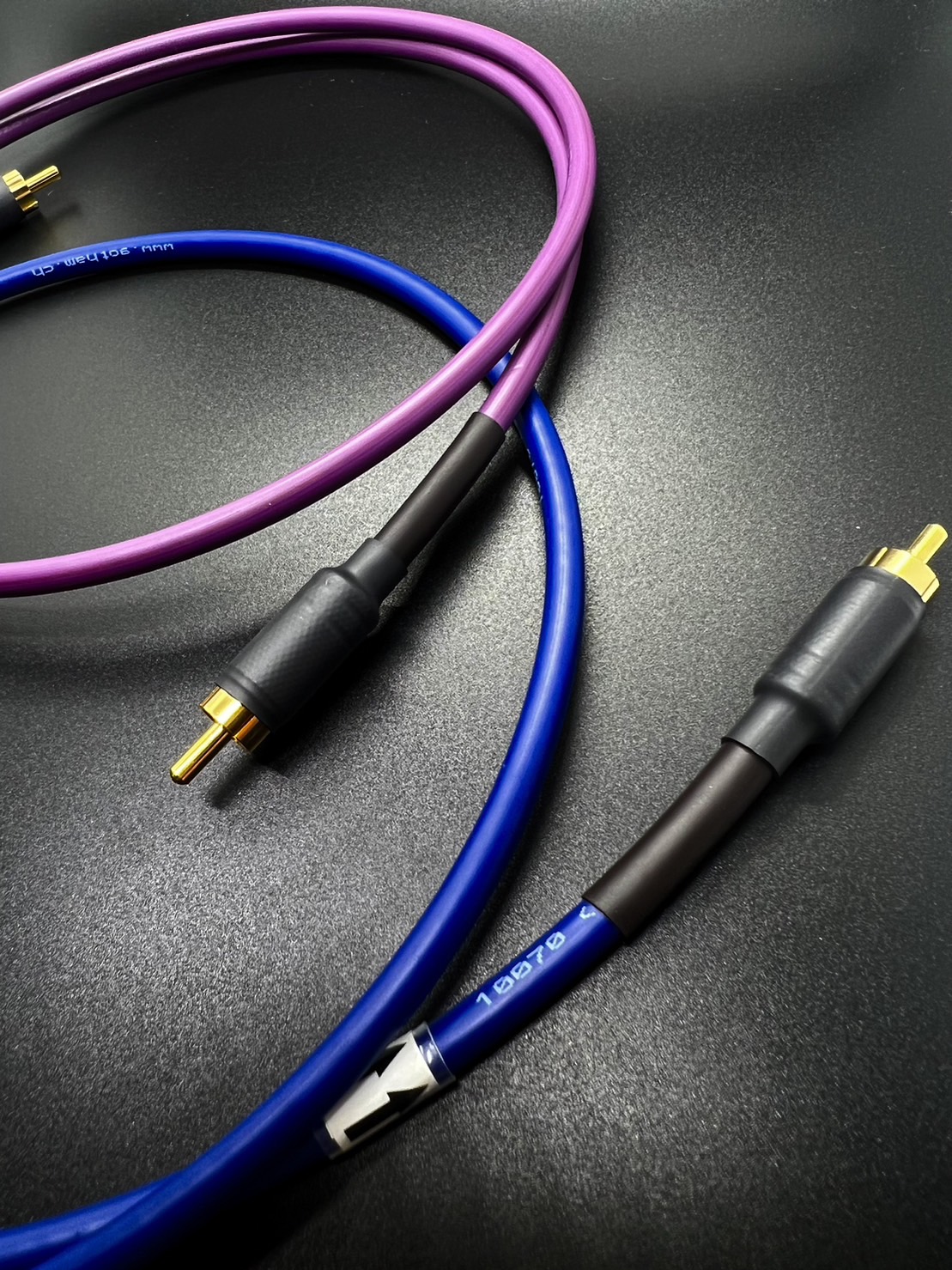

10060 GAC-1 S/PDIF Hi-End digital 75 Ohm Coax เส้นสีชมพู

ความยาว 1m. ราคา 1700.- / 1.5m. 2300.-

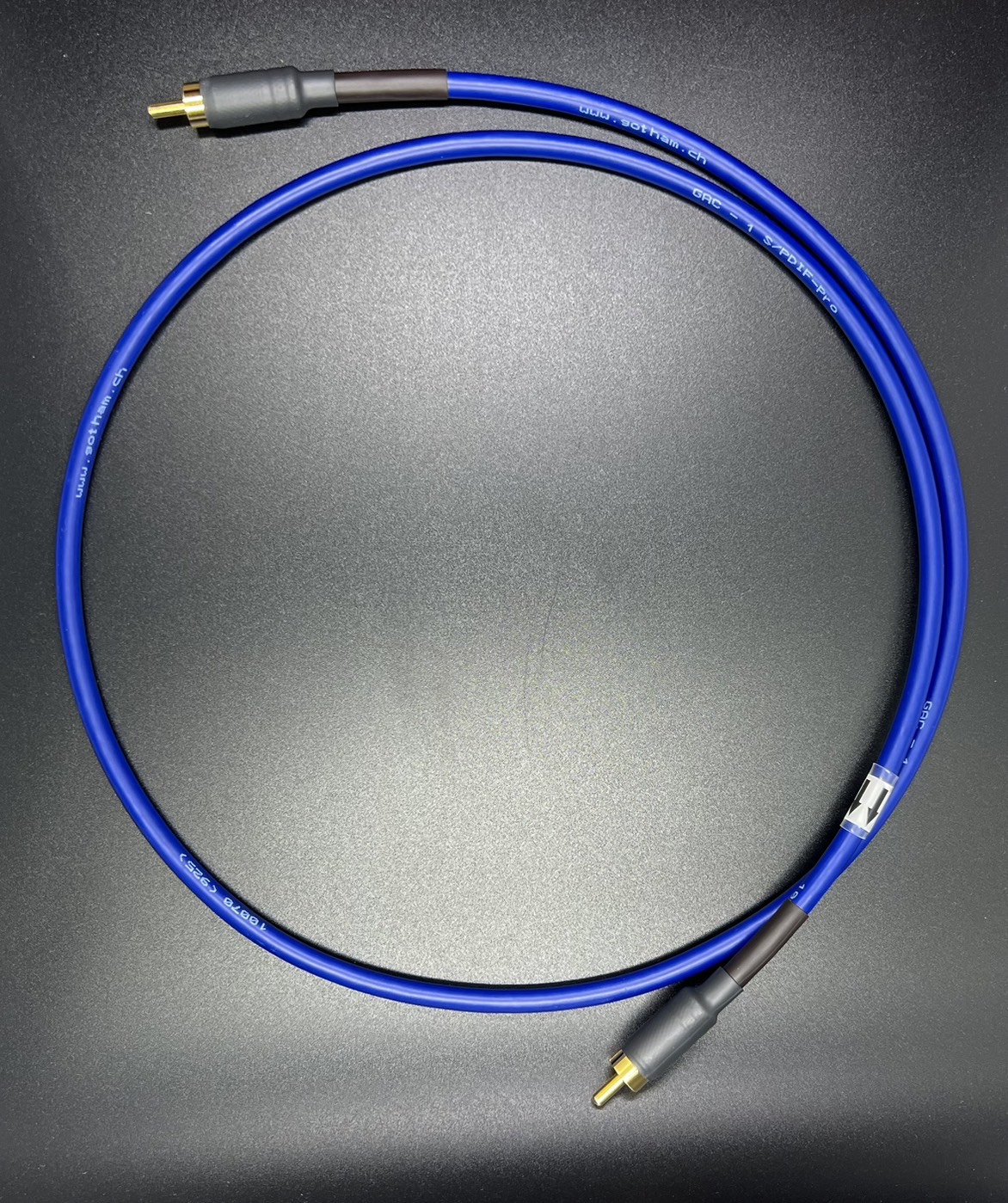

10070 GAC-1 S/PDIF Hi-End digital 75 Ohm Coax เส้นสีน้ำเงิน

ความยาว 1m. ราคา 2100.- / 1.5m. 2900.-

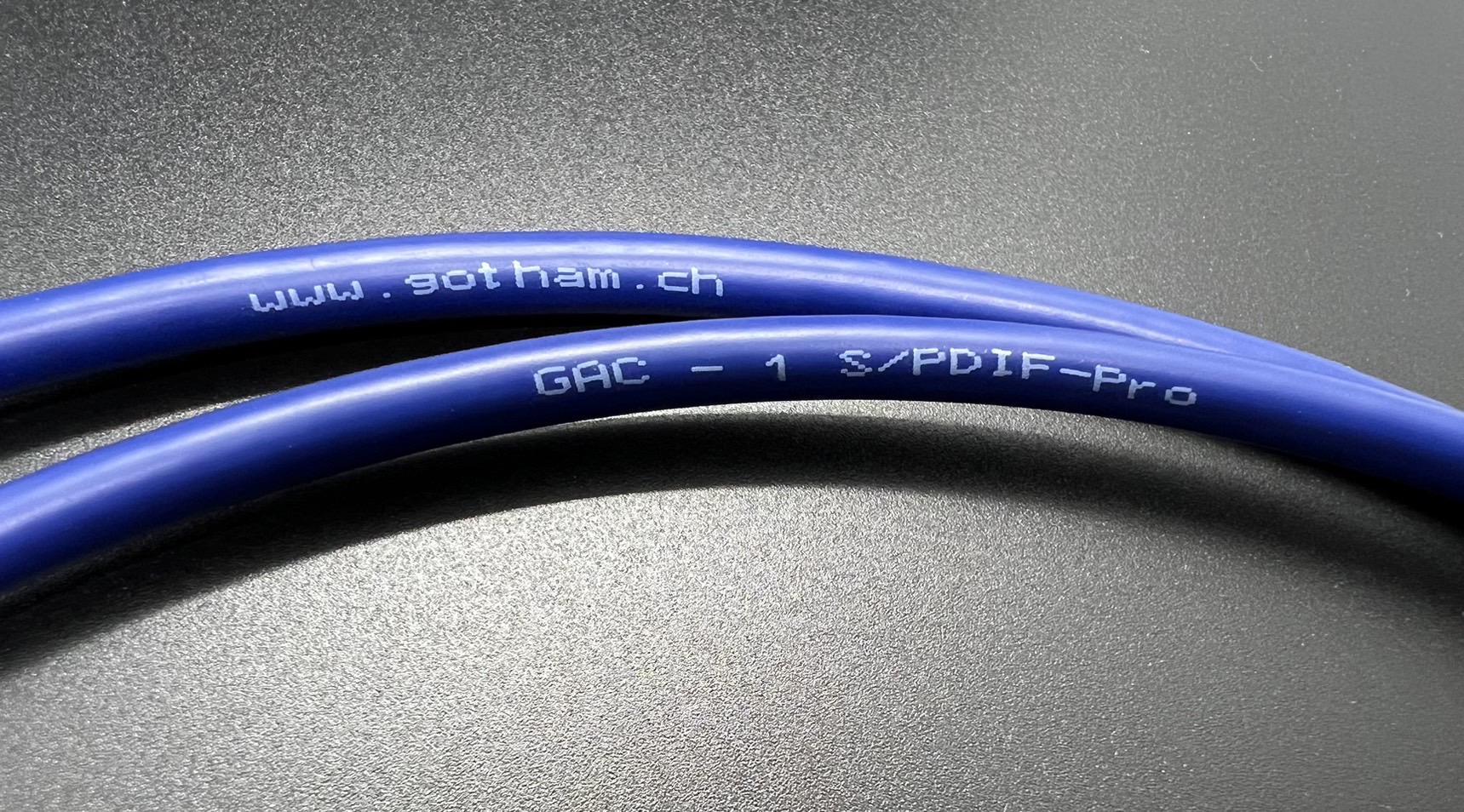

10070 GAC-1 S/PDIF Hi-End digital silver Cable 75 Ohm Coax
Flexible digital audio cable for S/PDIF digital datas. Ideal cable to assemble with phono connectors (cinch). Worry-free transport of your digital data with the right constructed cable. Combination of braid shield and aluminium foil for best shielding. Silver coated conductor and shield wires for best possible performance and to prevent from signal loss caused by the "skin effect".

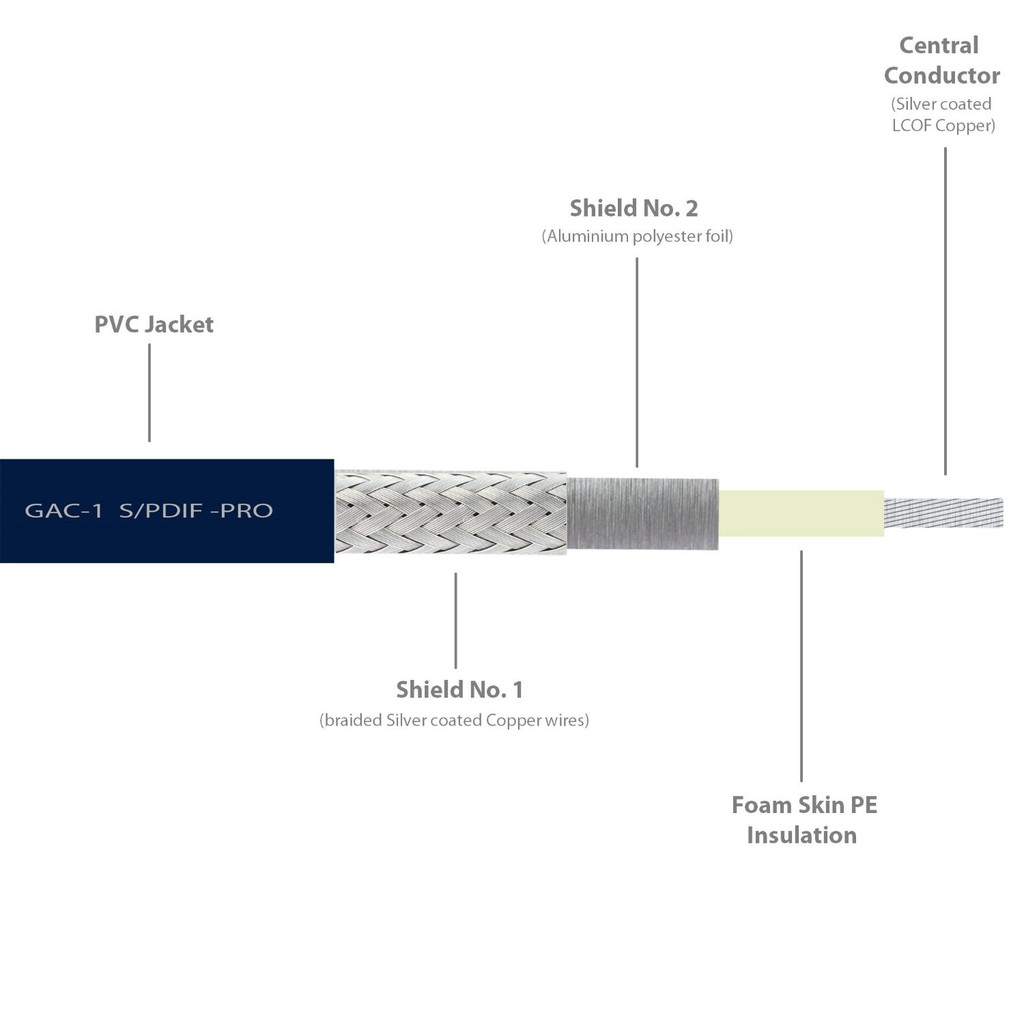

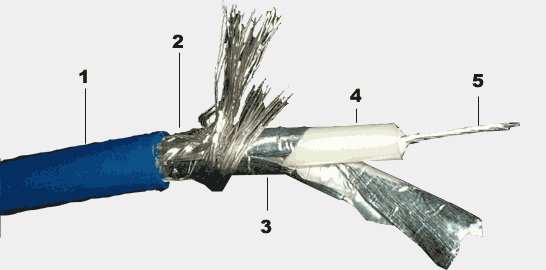

10070 Construction:

1 = Jacket: PVC Ø 5.6mm max., ultrablue RAL5013
2 = Shield No. 1: Braiding with silver coated copper wires (0.10 mm)
3 = Shield No. 2: Aluminium polyester foil
4= Insulation: Foam skin PE, 3.75 mm
5= Conductor: Silver coated copper wires 7 x 0.25mm ( 0.34 mm²) 22 AWG
Technical Datas:
Conductor resistance: < 60 ohm/km
at 1 MHz: < 1.0 dB/100m
at 6 MHz: < 2.5 dB/100m
Insulation resistance: > 10 gohm/km
Capacitance: < 56 nF/km
Characteristic impedance: bei 1-6 MHz: 75 ohm
Temperature range: flexi-installed: -5° to +50° C
fix-installed: -30° to +70° C

Shipment from stock in Switzerland

10060 GAC-1 S/PDIF Hi-End digital 75 Ohm Coax

รุ่นนี้สเปคเเทบจะเหมือนรุ่น 10070 ทุกอย่าง ยกเว้นไม่ได้ชุบเงินครับ

.

.

.

.

.

.
