1.ROTEL RA-12 สภาพพอใช่ได้ไม่มีรีโมทขายเพียง 9,500.B
2.ROTEL RA-1572 MK II สภาพดีมีอุปกรณ์ครบราคา 35,500.B

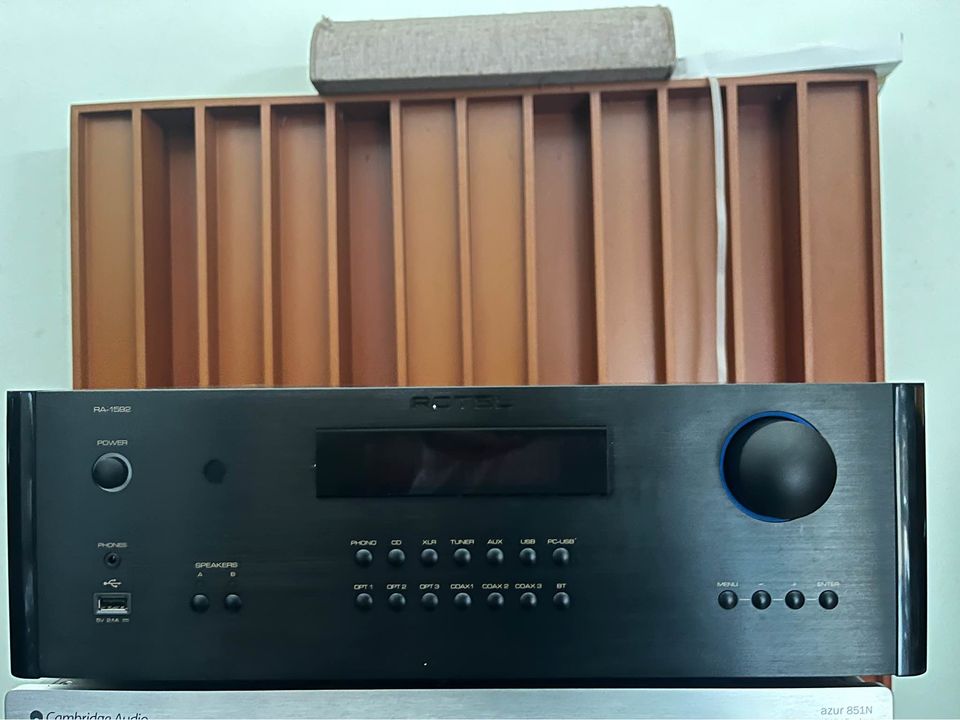

3.ROTEL RA-1592 MK I สภาพดีมีอุปกรณืครบราคา 42,500.B
สนใจติดต่อ 0816623531

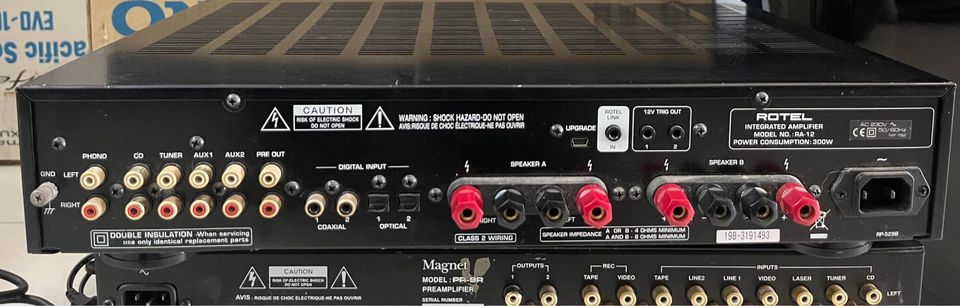

ROTEL RA-12

Model RA-12
Continuous Power Output 60Watts/ch (20-20kHz, < 0.03%, 8Ω)
Total Harmonic Distortion (20Hz-20kHz) < 0.03% at rated power
Intermodulation Distortion (60 Hz:7 kHz, 4:1) < 0.03% at rated power
Frequency Response Phono input 20Hz-15kHz, ±0.3dB
Line Level Inputs 10Hz-100kHz, ±1dB
Input Sensitivity / Impedance Phono input 2.5mV / 47 k Ω
Line Level Inputs 150mV / 24 k Ω
Input Overload Phono input 180mV
Line Level Inputs 5V
Preamp Output / Impedance 1V / 470Ω
Tone Controls - Bass / Treble ±4 dB at 100Hz / 10kHz
Signal to Noise Ratio (IHF “A” weighted) Phono input 80dB
Line Level Inputs 100dB
Digital Section -
Frequency Response 10Hz-95kHz ±3.0dB (MAX)
Signal to Noise Ratio (IHF “A” weighted) 100dB
Input Sensitivity/Impedance 0 dBfs/75V
Pre-out/Impedance 1.2V/470V (at -20dB)
Decodable Front USB/iPod Digital Signals AAC (m4a), WAV, MP3, WMA (up to 48K 16bit)
Coaxial/Optical PCM LPCM
File Formats Real Audio, MP3, OGG Vorbis, WAV, AIFF
and AU
General -
Power Requirements (AC) 120V, 60Hz (USA) 230V, 50Hz (Europe)
Power Consumption 300Watts
Standby Power Consumption 0.5W 0.5Watts
Dimensions (W x H x D) 430 x 92 x 342mm (17 x 3 5/8 x 13 1/2 ins)
Panel Height 80mm (3 1/16 ins)
Weight (Net) 8.02kg (18lbs)
Finishes Black, Silver

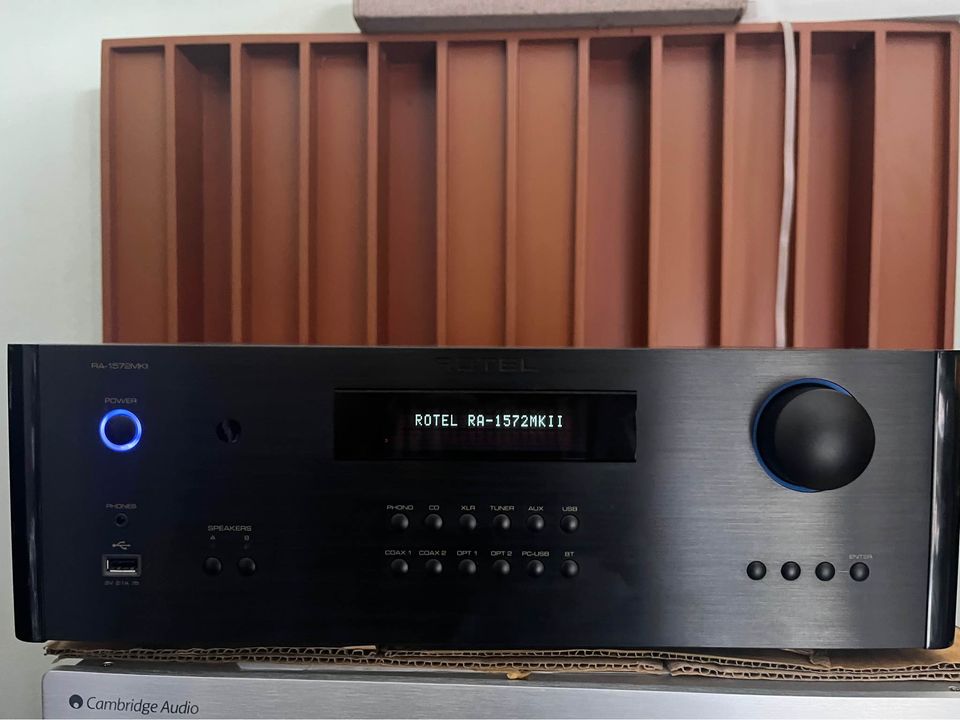

ROTEL RA-1572 MK II

Certified Roon Tested
Supports MQA
2 x 120 Watts of robust Class AB power
Moving magnet phono input for turntable connection
Wireless aptX™ and AAC Bluetooth

Specification
Continuous Power Output 200W/Ch (All channels driven, 8Ω)
Total Harmonic Distortion (THD) (20Hz–20kHz) <0.03%
Frequency Response Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 90kHz ±2dB
Phono Input: 20Hz - 20kHz ±0.5dB
S/N Ratio (IHF "A" Weighted) Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB
Standby Power Consumption <0.5W
Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
Power Requirements 120V, 60Hz
Power Consumption 500W
Damping Factor 600
Speaker Impedance 4Ω minimum
Input Sensitivity Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV
Input Impedance Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 52mV
Preout Level 1.9V
Output Impedance 100Ω
Tone Controls ±12dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals LPCM (Up to 24-bit/192kHz)
PC-USB USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)
DSD and DoP support
Dimensions (W × H × D) 431 × 144 × 425mm
17" × 5.7" × 16"
Front Panel Height 3U / 132.6mm (5.25")
Net Weight 16.8kg (37lbs.)
BTU Rating 1239 BTU/h
