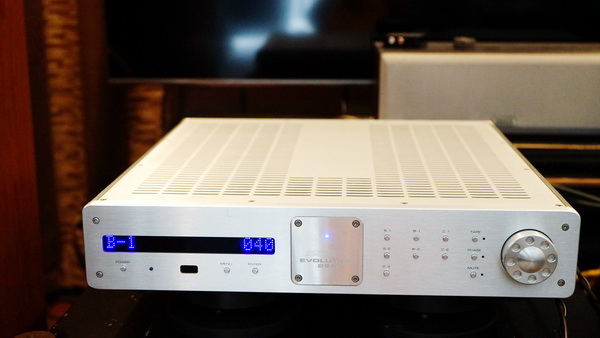

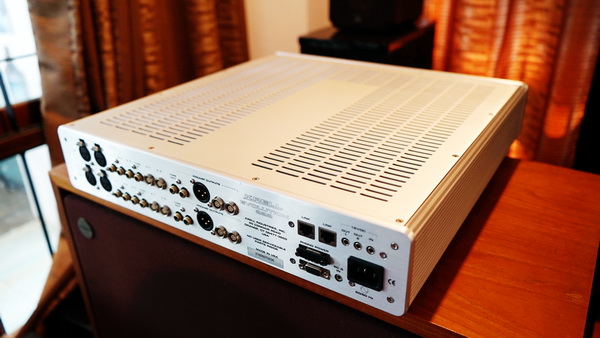

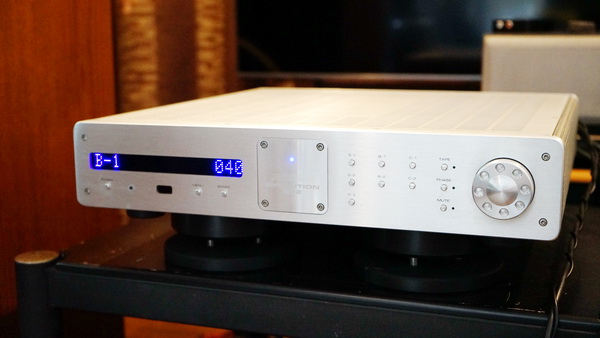

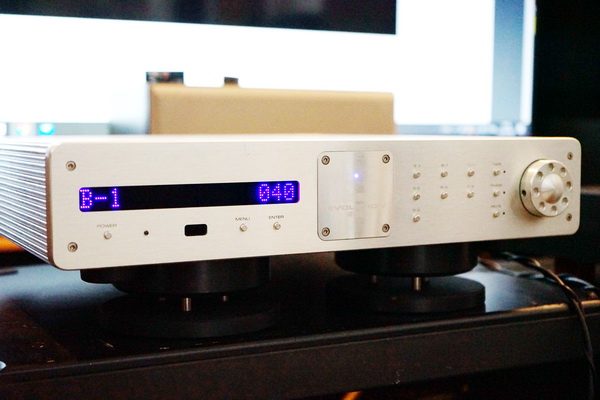

KRELL EVOLUTION 222

Specifications:

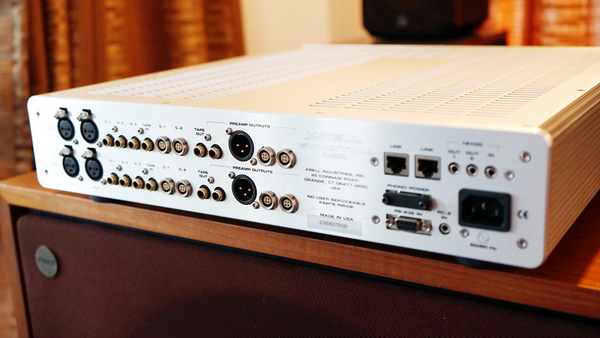

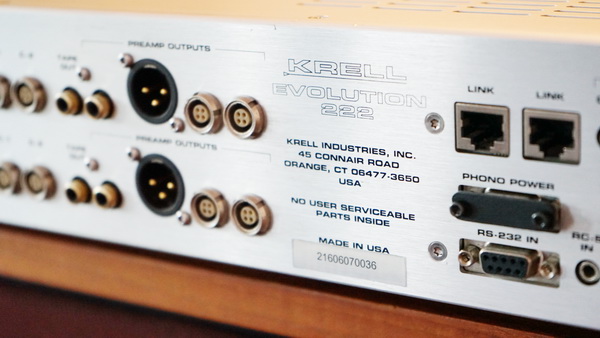

Inputs
2 pr. CAST via 4-pin bayonet connectors
2 pr. balanced via XLR connectors
3 pr. single-ended via RCA connectors

Tape input
1 pr. single-ended via RCA connector

Main outputs
2 pr. CAST via 4-pin bayonet connectors
1 pr. balanced via XLR connector
1 pr. single-ended via RCA connector

Tape outputs
1 pr. single-ended via RCA connector, buffered

Control inputs
1 RS-232 input via a 9-pin D-subminiature connector
1 remote IR detector input via a 3-conductor 3.5 mm connector
1 12 VDC trigger input via a 2-conductor 3.5 mm connector
1 preamplifier link via an RJ-45 connector


Control outputs
2 individually programmable 12 VDC trigger outputs via 2-conductor 3.5 mm connectors (500 milliamps maximum per output)
1 preamplifier link via an RJ-45 connector

Power output
1 phono power output (±20 VDC) for KPE via a 9-pin D-subminiature connector

Input impedance
CAST: 45 Ohms
Balanced: 95 k Ohms
Single-ended: 47.5 k Ohms

Output impedance
CAST: >1 M Ohms
Balanced: 50 Ohms
Single-ended: 25 Ohms

Gain
12 dB (CAST or balanced output)
6 dB (single-ended output)

Volume control
Balanced, current-mode,
16-bit, discrete R-2R ladder

Input overload
CAST: 14 mA RMS
Balanced: 14 V RMS
Single-ended: 7 V RMS

Output overload
CAST: 16 mA RMS
Balanced: 16 V RMS
Single-ended: 8 V RMS

Frequency response
20 Hz to 20 kHz ± 0.02 dB
0.1 Hz to 1.5 MHz +0, -3 dB

Total harmonic distortion plus noise
Balanced Output:
<0.004%, 20 Hz to 20 kHz, 4 V RMS or
4 mA RMS

Signal-to-noise ratio
4 V RMS balanced or 4 mA RMS CAST output
Wideband, unweighted: >99 dB
“A” weighted: >108 dB

Power consumption
Standby: 60 W
Power on: 65 W
Power on, with KPE: 75 W

Dimensions
17.3 in.W x 3.8 in. H x 18.3 in. D
43.8 cm W x 9.7 cm H x 46.4 cm D

เสียงผมว่ามันไปไกล กว่าที่จะกลับมามอง
ปรีแอมป์รุ่นเก่าๆ ที่เราว่าดีมากอยู่แล้ว
ข้ามไปเลยครับ มีรีโมทเทียบ
ถ้าต้อง คลิปเสียง ทัก LINE มาเลยครับ
MADE IN USA
ราคา 128,000 บาท
สนใจติดต่อ "โต้ง"
081-5877606
LINE ID: tonghifi

.

.

.

.

.

.

.
