ประกาศ : 69926
ลำโพงซัพ Paradigm Signature SUB 25,SVS SB 16 ULTRA,JL D110
โพสต์ : 06:03 12/11/2024
1.Paradigm Signature SUB 25 สภาพสวยราคาออกใหม่แสนกว่าบาทขายมือสองเพียง 45,900.B
2.SVS SB 16 ULTRA สภาพดีมีกล่องครบราคาออกใหม่ 123,900.Bขายมือสองเพียง 59,999.B
3.JL D110 สภาพดีมีกล่องอุปกรณ์ครบราคา 19,999.B
สนใจติดต่อ 0816623531

ผู้โพสต์ : ขอนแก่นไฮไฟ
อ่าน 90 | ตอบ 5
เพิ่มข้อความ : 1
เพิ่มข้อความเมื่อ : 06:04 12/11/2024

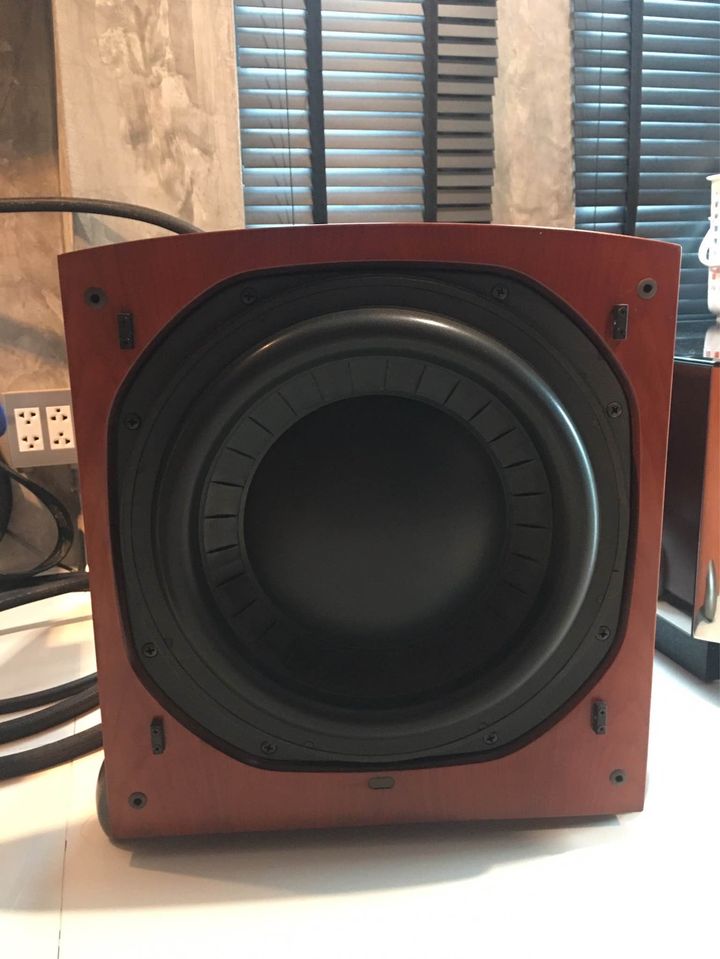

Paradigm Signature SUB 25
SPECIFICATIONS
DESIGN Single high-excursion driver, sealed enclosure, patented built-in Ultra-Class-D™ power isolation amplifier with Power Factor Correction, USB port
AMPLIFIER High-Current Discrete-Output, 7,500 watts Dynamic Peak / 3,000 watts RMS Sustained
AMPLIFIER FEATURES Auto-on / off, Trigger-on / off, soft clipping, electrical shorting protection, thermal protection
BASS DRIVER 380-mm (15 in) RCR™ mineral-filled co-polymer polypropylene cone, oversize FEA-optimized elliptical surround, dual spiders, massive aluminum shorting ring, 76-mm (3 in) eight-layer bifilar voice coil, high-temperature composite former, 37-lb (16.8 kg) triple ceramic / ferrite magnet / motor structure, AVS™ die-cast heatsink chassis
LOW FREQUENCY DRIVER 9 Hz (DIN)
SUITABLE AMPLIFIER POWER RANGE 120v – 240v: 50/60 Hz
FINISHES Cherry, Natural Maple, Piano Black
SUB / SAT PHASE ALIGNMENT Variable 0° – 180°
SUBWOOFER CUT-OFF FREQUENCY Variable 35 Hz – 150 Hz, Bypass Option
LINE-LEVEL INPUT RCA (S/E) Left and Right or Sub-Out / LFE or Balanced XLR. From Sub-Out / LFE-Out of preamp / processor or other line-level source
LINE-LEVEL INPUT SENSITIVITY 100 mV mono
LINE-LEVEL INPUT IMPEDANCE RCA: 10k ohms, XLR: 20k ohms
DIMENSIONS HXWXD 51.0 cm x 46.0 cm x 55.0 cm (20-1/8 in x 18-1/8 in x 21-1/2 in)
WEIGHT 51.7 kg / 114 lb each

ผู้เพิ่มข้อความ : ขอนแก่นไฮไฟ
เพิ่มข้อความ : 2
เพิ่มข้อความเมื่อ : 06:05 12/11/2024

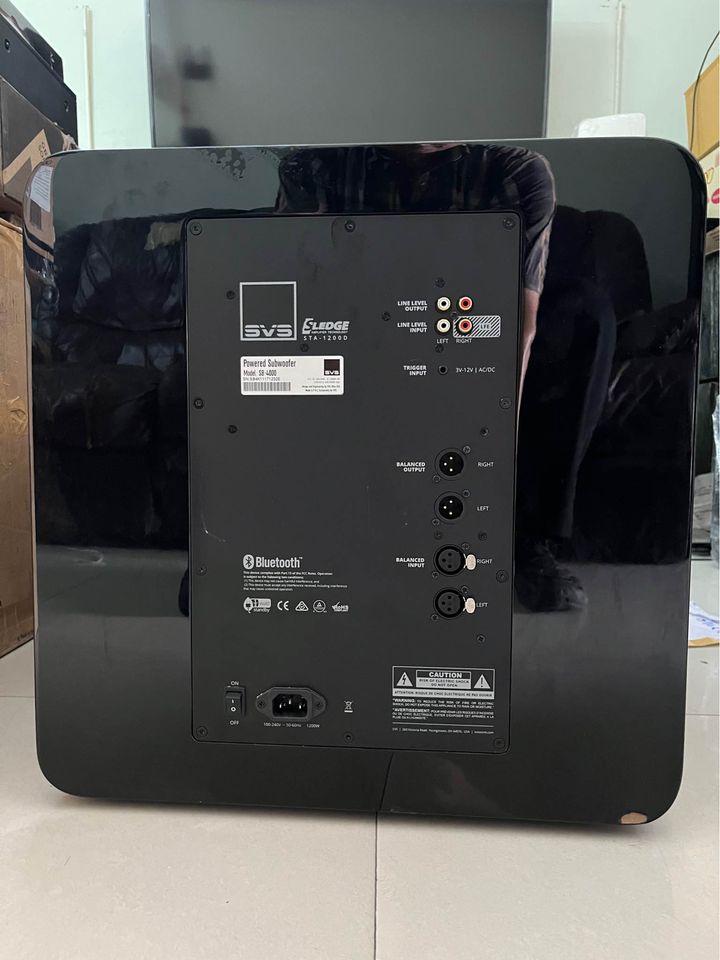

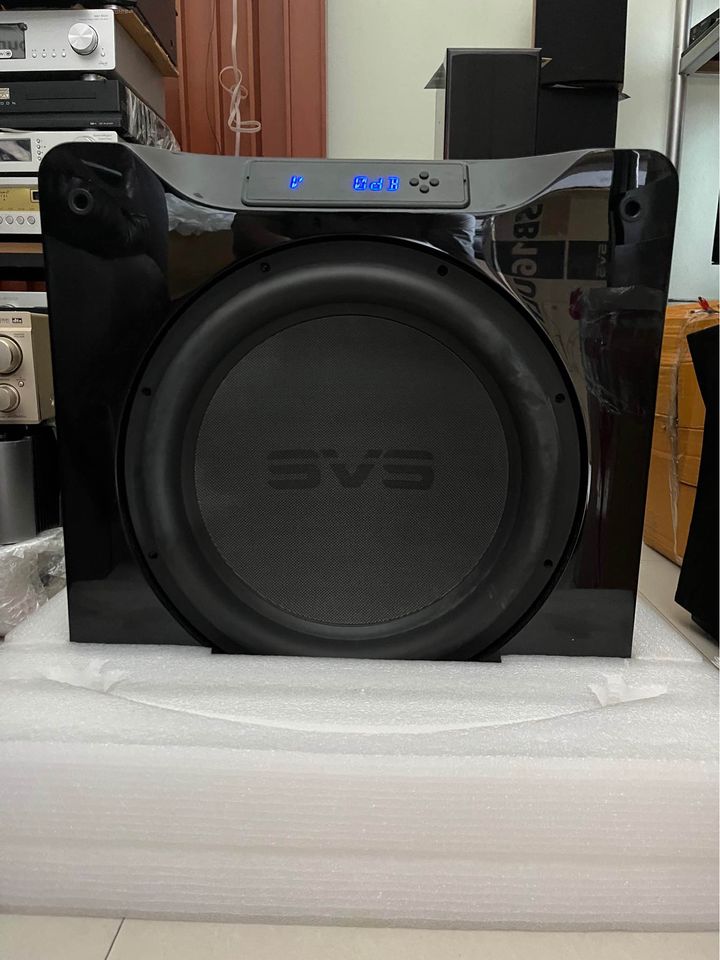

SVS SB16

ผู้เพิ่มข้อความ : ขอนแก่นไฮไฟ
เพิ่มข้อความ : 3
เพิ่มข้อความเมื่อ : 06:07 12/11/2024
Subwoofer Specs:

Black Oak and Piano Gloss Black finish options
Protective non-resonant steel mesh grille
Front-firing 16" driver
Rear-mounted amplifier
Screw-in rubber feet
Robust Medium Density Fiberboard(MDF) cabinet construction
Cabinet Dimensions: 20" (H) x 19.5" (W) x 20.1" (D) (without grille)
Cabinet Dimensions (with grille): 20” (H) X 19.5” (W) X 22.9” (D)
Shipped Dimensions: 24.9" H X 25.1" W X 30.3" D
Weight (unboxed): 122 pounds
Shipped Weight: 145.9 pounds

Driver Specs:

SVS 16” Ultra-series driver
Powder-coated cast aluminum basket
Four high-grade ferrite magnets
Finite Element Analysis (FEA)-optimized motor structure
Dual shorting rings reduce gap induction and lower distortion
Extended pole piece improves heat sink and thermal management properties
8” diameter, high-power edge wound voice coil
78mm peak to peak Xmech excursion (65mm Xmax)
Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
Dual 24-strand copper and Nomex composite high-temperature leads provide a pristine electrical connection from the amplifier to the voice coil
Premium glass fiber laminated dustcap and reinforced composite cone sub-structure ensure a light, ridged, and neutral radiating surface
Low-creep rubber long-throw surround for excellent durability and longevity

Amplifier Specs:

Sledge STA-1500D DSP amplifier
1,500 watts RMS continuous (5,000+ watts peak dynamic)
Efficient and cool-running Class D topology
High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available for perfect audio reproduction
Active PFC (Power Factor Correction) ensures the cleanest 1500W output regardless of your home mains supply
XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications
Convenient front-mounted display with subwoofer controls and 8 digit LED display
Groundbreaking Subwoofer Control and Bass Management Smartphone App for Apple and Android Devices
IR Remote Control
Three user adjustable parametric EQs
Continuously variable volume/gain control
Continuously variable (0-180 degrees) phase control
Continuously variable (30-200 Hz) 6, 12, 18, or 24 dB/octave low pass filter frequency with disable/LFE setting
Main power rocker switch
Auto-On / On / Trigger Controls
3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input
Green standby mode with > 0.5 watts consumption
Input impedance 22kohm (RCA)/ 22kohm (XLR).
RoHS compliant, lead-free construction and world-wide safety certifications
Detachable power cord

ผู้เพิ่มข้อความ : ขอนแก่นไฮไฟ
เพิ่มข้อความ : 4
เพิ่มข้อความเมื่อ : 06:10 12/11/2024

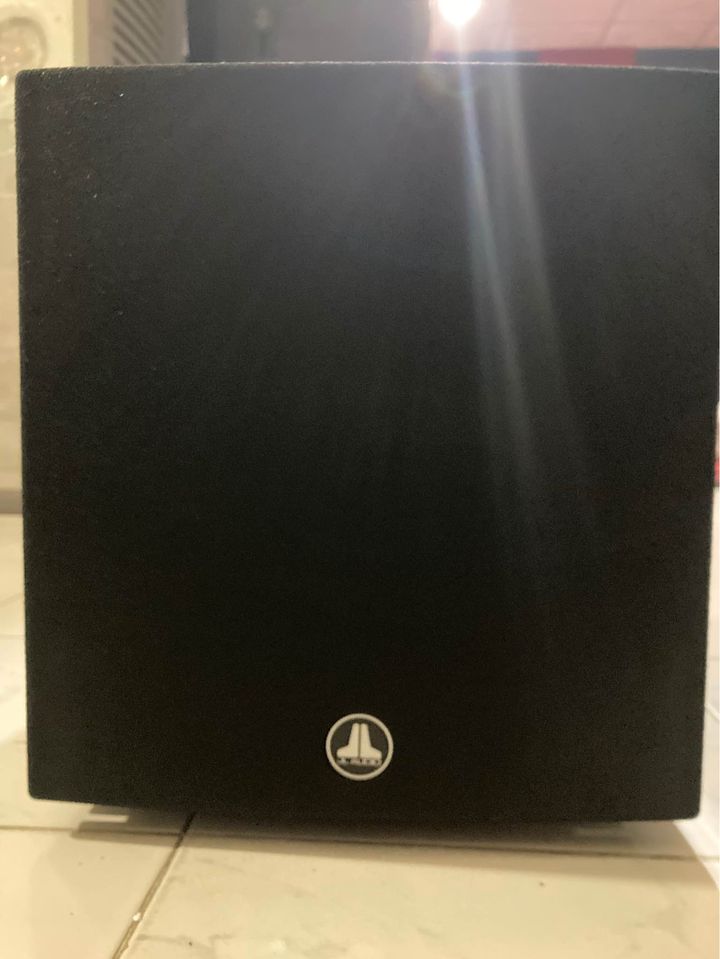

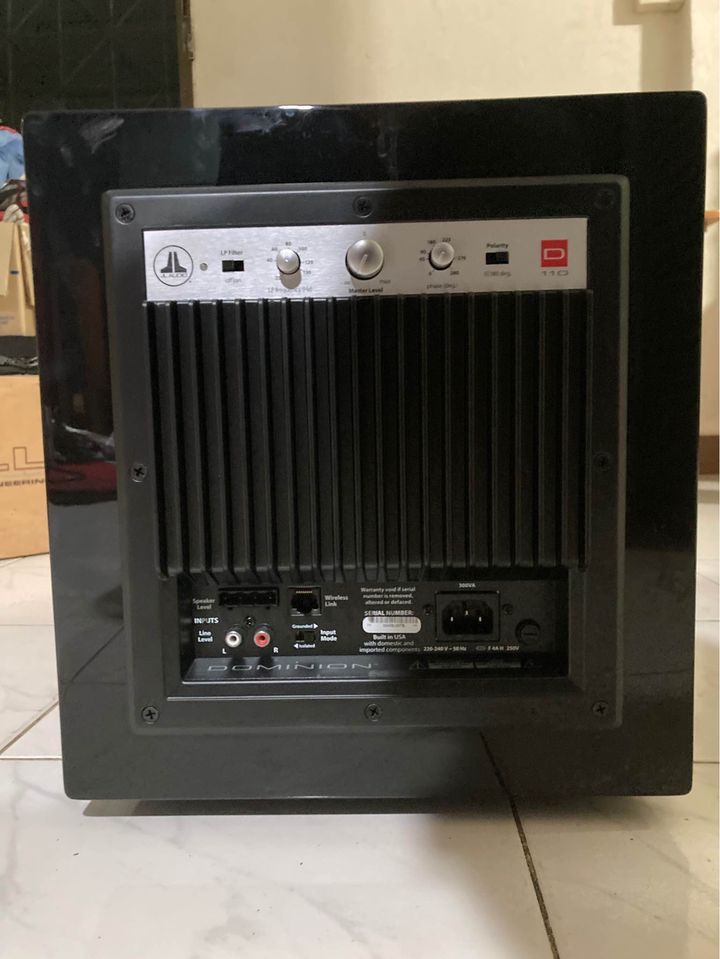

JL D110
Specifications

Frequency response (+/- 1.5 dB, -3 dB): 27 Hz to 111 Hz, 25 Hz to 118 Hz

Amplifier power: 750 W RMS short term

Inputs: 2 x RCA for stereo or mono, stereo or mono high level

Filter: Low pass, 24 dB/octave, defeatable, 25 Hz to 130 Hz

Polarity: 0 or 180 degrees

Phase: Variable, 0-280 degrees, referenced to 80 Hz

Line outputs: 2 x RCA for stereo or mono, high-pass or pass-through

Dimensions (WHD): 12" x 13.4" x 15.86"

Weight: 38.2 lb

ผู้เพิ่มข้อความ : ขอนแก่นไฮไฟ
เพิ่มข้อความ : 5
เพิ่มข้อความเมื่อ : 06:11 12/11/2024
JL
