สเปค

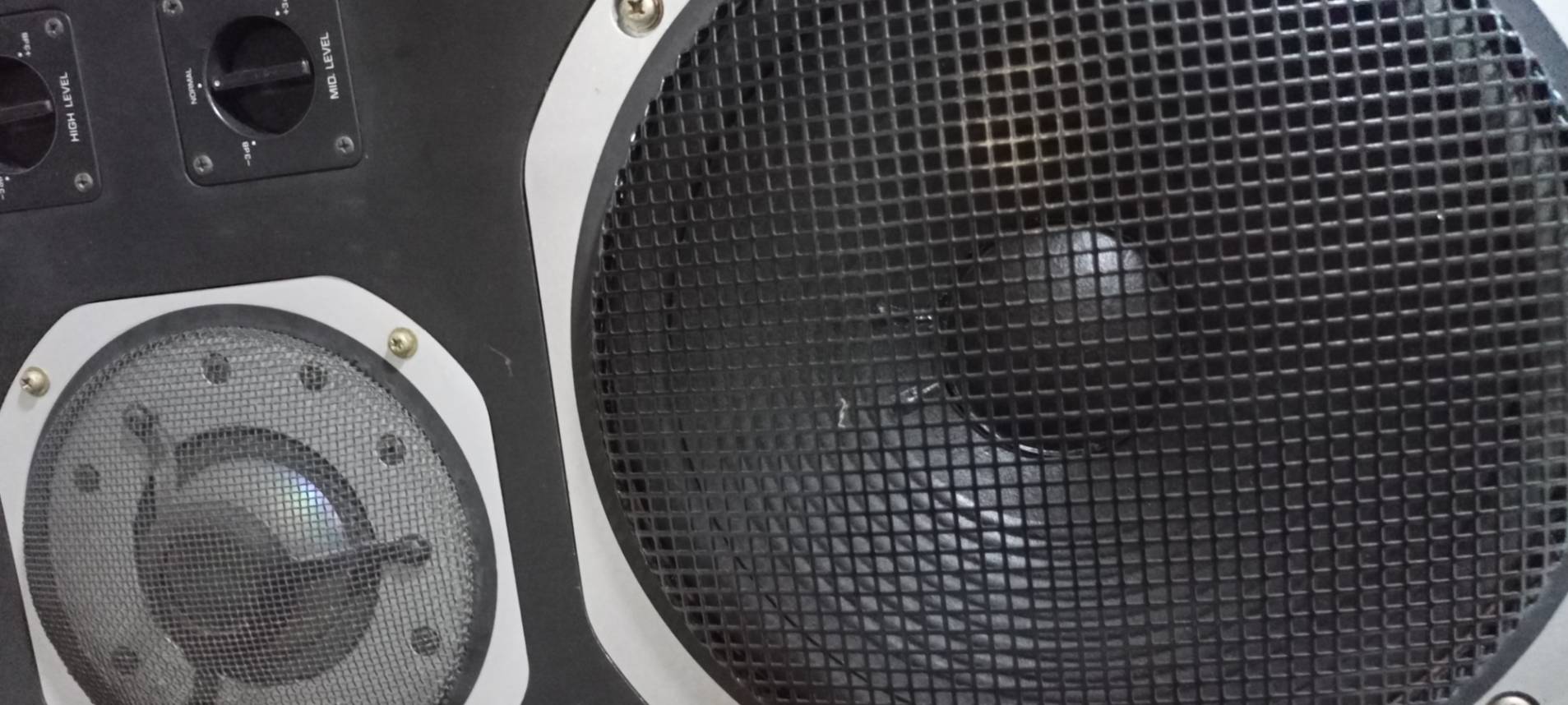

Woofer : 12" กรวยกระดาษ

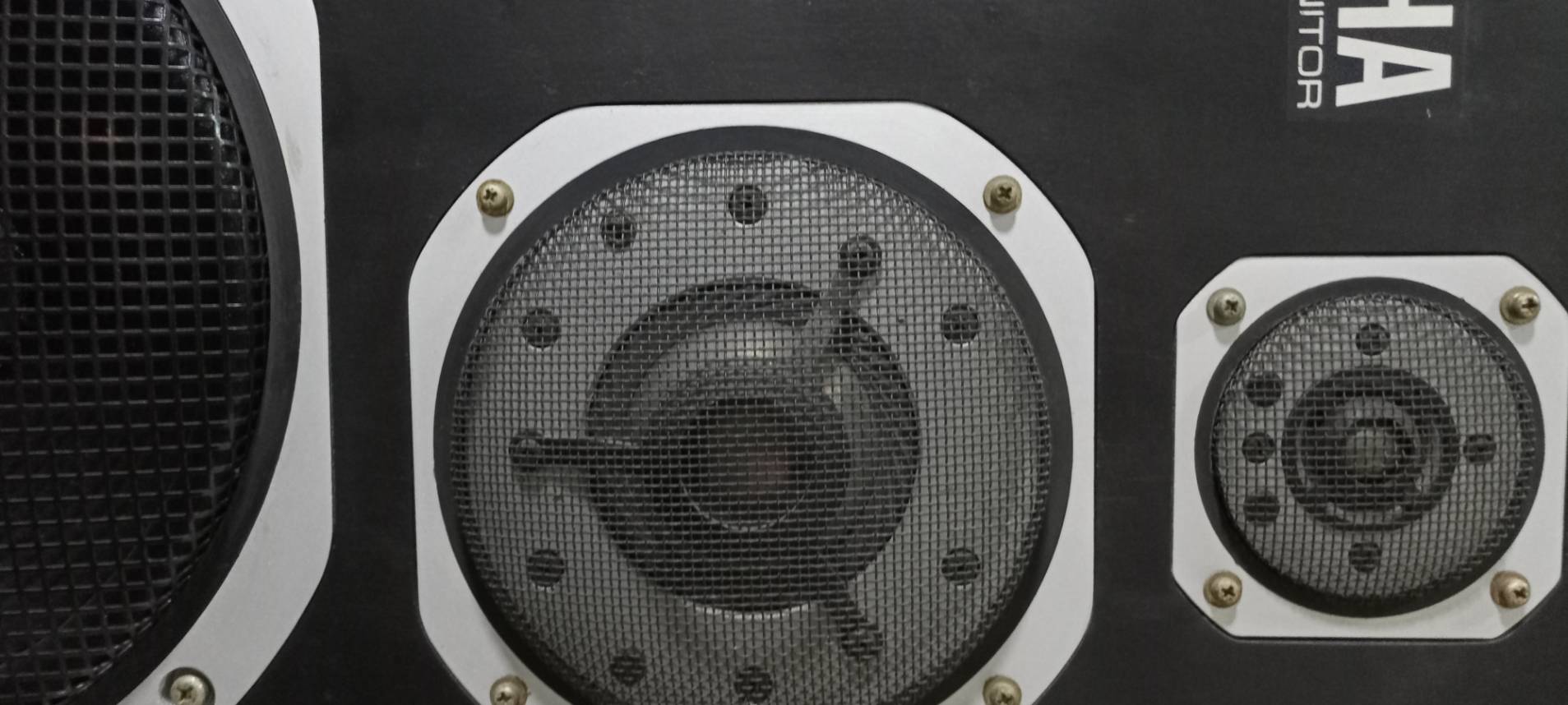

Mid : 3.5" โดมเบอริเรี่ยม
Hi : 1.25" โดมเบอริเรี่ยม
Sensitivity : 90dB
Model rating
method 3 ways, 3 speakers,a closed system, and a bookshelf type
Unit used For low-pass: 30cm cone type (JA-3058) For
mid-range:
8.8cm dome type (JA-0801) For
high-pass:
3.0cm dome type (JA-0513)
Reproduction frequency band 40Hz to 20kHz
crossover frequency 500Hz, 6kHz, 12dB/oct
lowest resonant frequency 40Hz
impedance 8Ω
Output sound pressure level 90dB/W/m
Rated input (JIS continuous) 50W
Maximum allowable input 100W
level controller Medium/high range, continuous variable type
External dimensions Width 395x height 710x depth 349mm
weight 39kg
