1.Rotel RA-12 สภาพมีริ้วรอยไม่มีรีโมทราคา 8,999.B
2.Rotel RA-1592 MK I สภาพดีมีกล่องครบราคา 43,210.
สนใจติดต่อ 0816623531

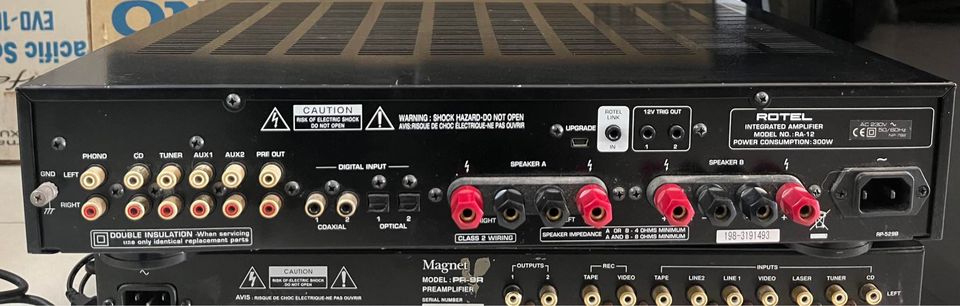

Model RA-12
Continuous Power Output 60Watts/ch (20-20kHz, < 0.03%, 8Ω)
Total Harmonic Distortion (20Hz-20kHz) < 0.03% at rated power
Intermodulation Distortion (60 Hz:7 kHz, 4:1) < 0.03% at rated power
Frequency Response Phono input 20Hz-15kHz, ±0.3dB
Line Level Inputs 10Hz-100kHz, ±1dB
Input Sensitivity / Impedance Phono input 2.5mV / 47 k Ω
Line Level Inputs 150mV / 24 k Ω
Input Overload Phono input 180mV
Line Level Inputs 5V
Preamp Output / Impedance 1V / 470Ω
Tone Controls - Bass / Treble ±4 dB at 100Hz / 10kHz
Signal to Noise Ratio (IHF “A” weighted) Phono input 80dB
Line Level Inputs 100dB
Digital Section -
Frequency Response 10Hz-95kHz ±3.0dB (MAX)
Signal to Noise Ratio (IHF “A” weighted) 100dB
Input Sensitivity/Impedance 0 dBfs/75V
Pre-out/Impedance 1.2V/470V (at -20dB)
Decodable Front USB/iPod Digital Signals AAC (m4a), WAV, MP3, WMA (up to 48K 16bit)
Coaxial/Optical PCM LPCM
File Formats Real Audio, MP3, OGG Vorbis, WAV, AIFF
and AU
General -
Power Requirements (AC) 120V, 60Hz (USA) 230V, 50Hz (Europe)
Power Consumption 300Watts
Standby Power Consumption 0.5W 0.5Watts
Dimensions (W x H x D) 430 x 92 x 342mm (17 x 3 5/8 x 13 1/2 ins)

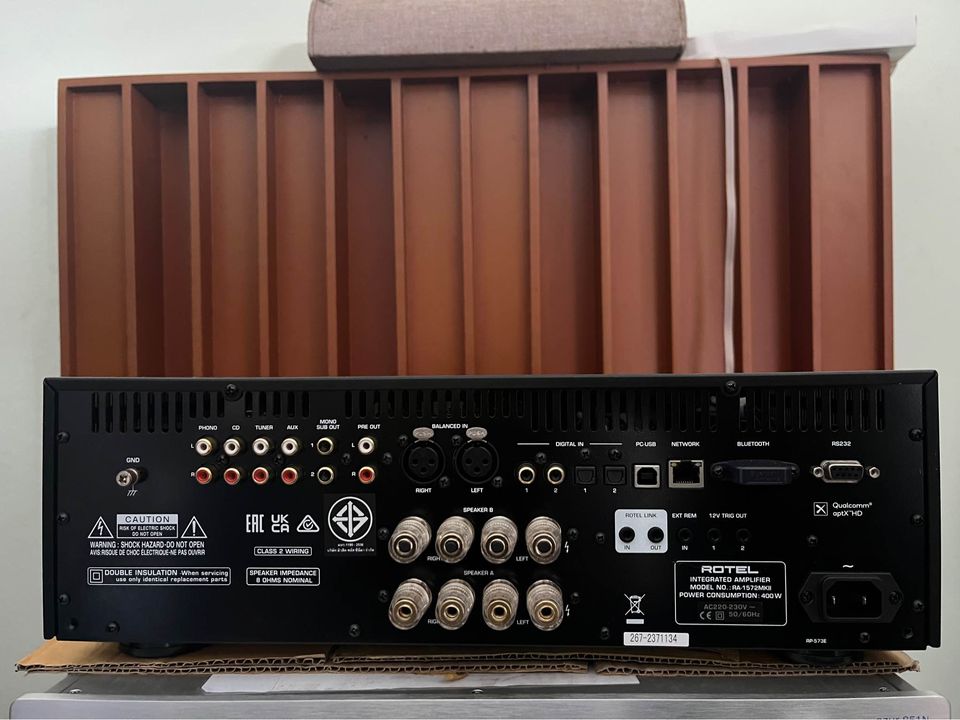

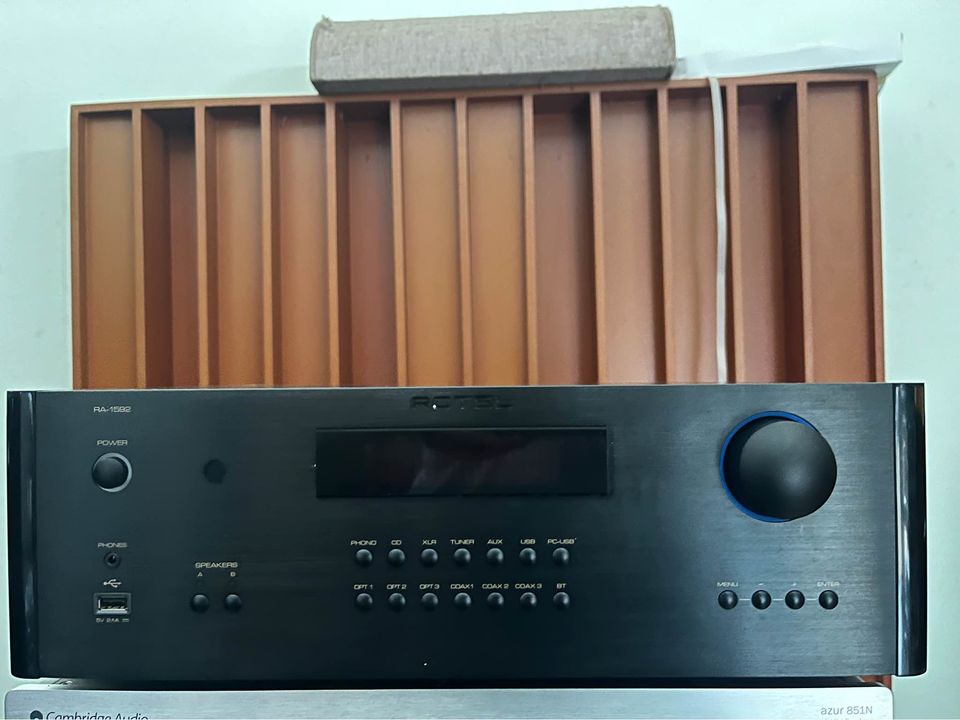

Rotel RA-1592 MK I


หน้าแรก สินค้า Integrated Amp ROTEL RA-1592

ROTEL RA-1592
now
ROTEL RA-1592
฿88900.00
ROTEL RA-1592
จำนวน

หมวดหมู่ : Integrated Amp รหัสสินค้า : 002686

รายละเอียดสินค้า ROTEL RA-1592

Rotel : RA-1592 (Black & Silver)

The RA-1592 Integrated Amplifier leverages the strengths of our award winning RC-1590 preamplifier and RB-1582 MkII power amplifier in a sleek single chassis design.

There has never been a better time to be a music lover. Today’s source options provide limitless audiophile quality music. CD-or-better quality streaming, high resolution download sites, inexpensive mass storage devices, the still resilient CD and the resurgence of classic vinyl are all providing a wealth of content at impressively high fidelity. To hear all this music as the artist intended requires an extraordinarily flexible, sonically capable component.

The RA-1592 Integrated Amplifier is exactly that component. It leverages the strengths of our award winning RC-1590 preamplifier and RB-1582 MkII power amplifier in a sleek single chassis design. With a powerful 200 watt per channel Class AB amplifier using performance audio grade components, the RA-1592 can effortlessly drive large speaker systems. The impressive Rotel manufactured toroidal transformer is a key element in the power supply design which also includes custom slit-foil storage capacitors and a dual-monoblock topology. All of this helps to ensure the amplifier performance stands up to even the most complex music and real world playback conditions.

To complement the amplifier section, the RA-1592’s preamplifier incorporates the superb 32-bit/768kHz AKM digital-to-analog converter (DAC) and analog stages of the highest quality. The DAC and surrounding circuitry supports a vast array of source inputs including DSD capable PC-USB (24-bit/192kHz), 3 coaxial, 3 optical, integrated aptX® Bluetooth and front mounted USB iPod input. In recognition of the faithful analog music lovers, there is a phono stage input (MM), XLR balanced input and 3 analog RCA source inputs.

User selectable A-B speaker outputs with 5-way binding posts, RCA pre-output and dual subwoofer outputs provide the ultimate flexibility in installation. The amplifier protection circuits monitor DC offset, overcurrent, short circuit and temperature to protect both the electronics and attached speakers.

Custom integration features include RS232 and Ethernet IP control, 2 trigger outputs, remote IR input and automated digital signal sense power control for easy integration with streaming sources and control systems.

The RA-1592 is the finest integrated amplifier yet in Rotel’s 55 year history of producing performance audio components.

Specification
Continuous Power Output 200W/Ch (All channels driven, 8Ω)
Total Harmonic Distortion (THD) (20Hz–20kHz) <0.03%
Frequency Response Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 90kHz ±2dB
Phono Input: 20Hz - 20kHz ±0.5dB
S/N Ratio (IHF "A" Weighted) Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB
Standby Power Consumption <0.5W
Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
Power Requirements 120V, 60Hz
Power Consumption 500W
Damping Factor 600
Speaker Impedance 4Ω minimum
Input Sensitivity Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV
Input Impedance Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 52mV
Preout Level 1.9V
Output Impedance 100Ω
Tone Controls ±12dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals LPCM (Up to 24-bit/192kHz)
PC-USB USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)
DSD and DoP support
Dimensions (W × H × D) 431 × 144 × 425mm
17" × 5.7" × 16"
Front Panel Height 3U / 132.6mm (5.25")
