1.Marantz PM-7005 สภาพดีมีรีโมทครบราคา 15,500.B

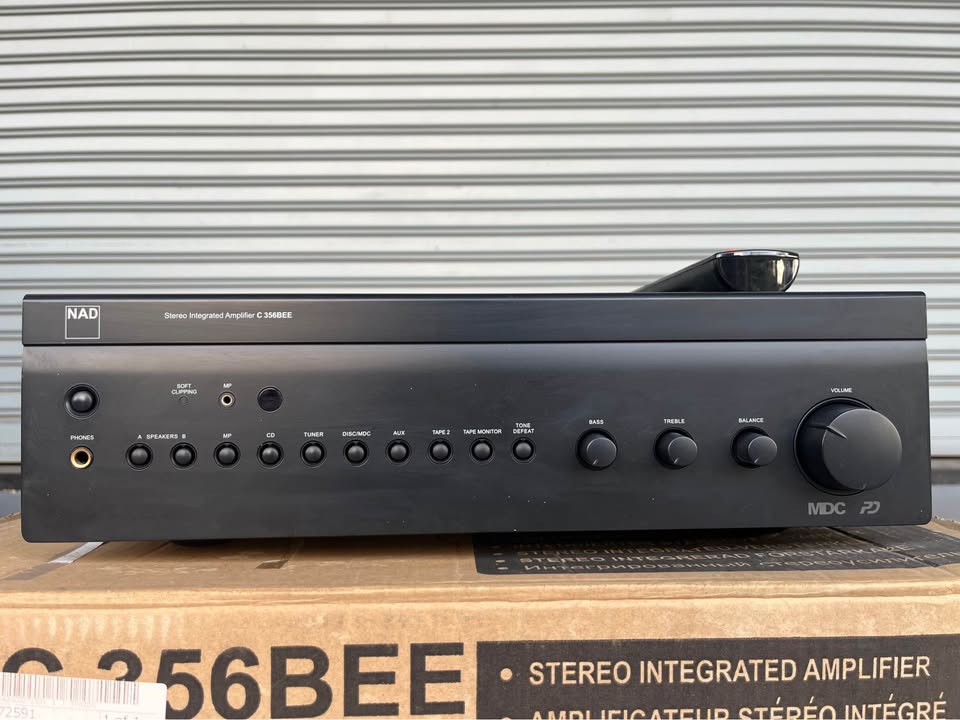

2.NAD C 356 BEE สภาพดีมีกล่องครบราคา 15,500.B

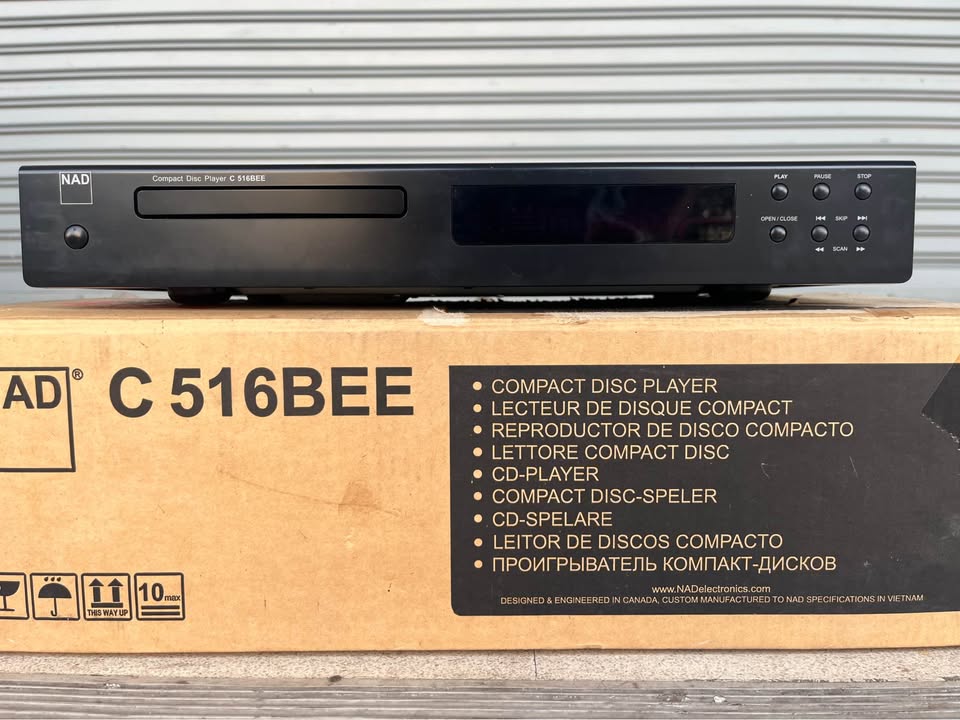

3.CD NAD C 516 BEE สภาพดีมีกล่องครบราคา 5,999.B
สนใจติดต่อ 0816623531

NAD C 356 BEE
LINE IN, SPEAKER OUT
Continuous output power into 8 Ω and 4 Ω (Stereo)
THD* 20Hz - 20kHz, CCIF IMD, SMPTE IMD, DIM 100
Clipping Power
IHF Dynamic Headroom 8 Ohms
4 Ohms
IHF Dynamic Power 8 Ohms
4 Ohms
2 Ohms
Signal/Noise Ratio
Frequency Response
Channel Separation 1kHz
10kHz
POWER CONSUMPTION
Standby Power
Idle Power
Rated Power
DIMENSION AND WEIGHT
Unit Dimensions (W x H x D) Gross**
Net Weight
Shipping Weight
C 356BEE
>80W (at rated THD, 20Hz-20kHz, both channels driven)
<0.009% (250mW to 80W, 8 Ω and 4 Ω)
>90W (at 1kHz 0.1% THD)
+2.6dB
+4.4dB
145W
220W
290W
>92dB (IHF; A-weighted, 500mV input, ref. 1W out in 8 Ω)
>110dB (IHF; A-weighted, ref. 80W in 8 Ω, max. volume)
±0.3dB (20Hz-20kHz, Tone Defeat ON)
10Hz - 65kHz (-3dB)
>80dB
>68dB
<0.5W
<40W
350W (230V AC 50Hz; 120V AC 60Hz)
435 x 130.86 x 337mm
17 1/8 x 5 3/16 x 13 5/16 inches***
8.7kg (19.2lbs***)
10.6kg (23.4lbs***)
NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics
International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form whatsoever without the written
permission of NAD Electronics International. © 07/10 NAD Electronics International.
www.NADelectronics.com
* THD is the sum of all the harmonic components within the 80kHz measurement bandwidth and does not include noise.
** Gross dimensions include feet, buttons and rear panel terminals.
*** Non-metric measurements are approximate. NAD Electronics will not assume any liability for errors being made by retailers, custom
installers, cabinet makers, or other end users based on information contained in this document.
Note: Installers should allow a minimum clearance of 55mm for wire/cable management.
Specifications

NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of
NAD Electronics International. All rights reserved. No part of this publication may be reproduced, stored, or transmitted in any form
whatsoever without the written permission of NAD Electronics International. © 12/17 12-048 NAD Electronics International.
www.NADelectronics.com
* Gross dimensions include feet, extended buttons and rear panel terminals.
** Non-metric measurements are approximate. NAD Electronics will not assume any liability for errors being made by retailers, custom installers,
cabinet makers, or other end users based on information contained in this document.
Note: Installers should allow a minimum clearance of 55mm for wire/cable management.
Specifications
GENERAL PARAMETERS C 516BEE
Output Level 2.2 ±0.1V (ANALOGUE)
Frequency Response ±0.5dB (ref. 0 dB 20Hz-20kHz)
Total Harmonic Distortion ≤ 0.01% (ref. 20Hz-20kHz, LPF 20kHz)
Signal/Noise Ratio ≥ 118dB (ref. 1kHz, A-weighted LPF 20kHz Stop, Pause)
Channel Balance 0.5dB (ref. 0dB 1kHz)
Channel Separation ≥ 90dB
De-emphasis -3.73 to -5.33dB (ref. 0dB 1kHz, 5kHz)
-8.04 to -10.04db (ref. 0dB 1kHz, 16kHz)
Linearity -3 ±0.01dB (ref. 0dB 1kHz at -3dB)
-6 ±0.02dB (ref. 0dB 1kHz at -6dB)
-10 ±0.02dB (ref. 0dB 1kHz at -10dB)
-20 ±0.05dB (ref. 0dB 1kHz at -20dB)
-60 ±0.15dB (ref. 0dB 1kHz at -60dB)
POWER CONSUMPTION
Standby Power ≤ 0.5W
Idle Power ≤ 8.0W
DIMENSION AND WEIGHT
Unit Dimensions (W x H X D) 435 x 70 x 249mm (Gross)*
17 1/8 x 2 3/4 x 9 13/16 inches
Net Weight 3.5kg (7.7lb)
Shipping Weight 4.5kg (9.9lb)
