2. Stereo Integrated Amplifier

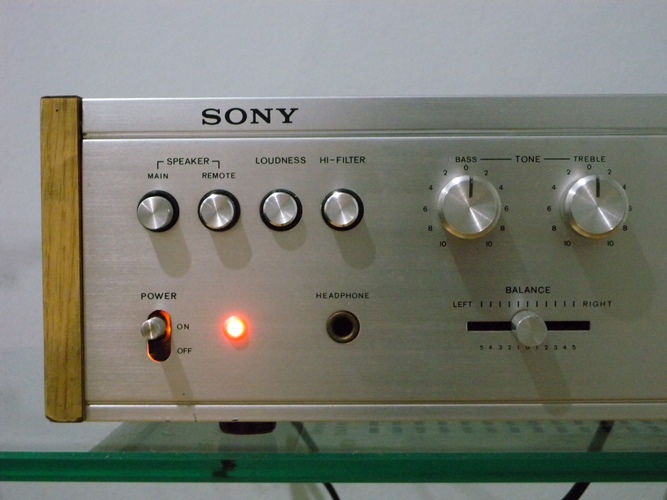

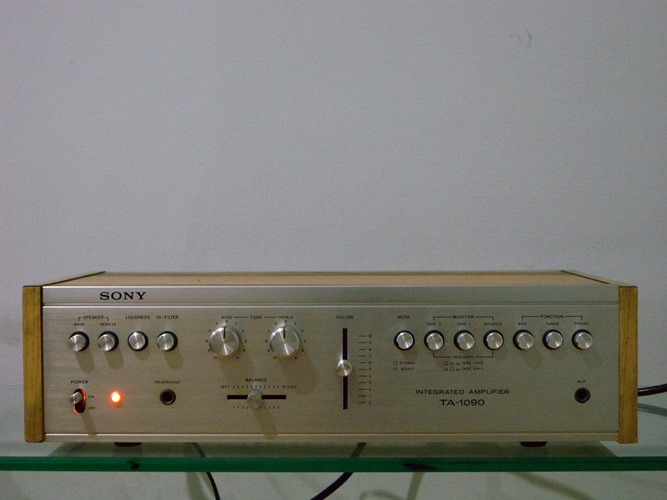

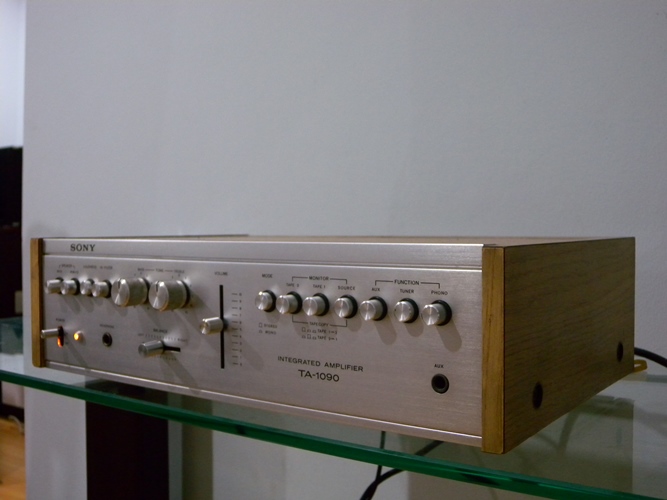

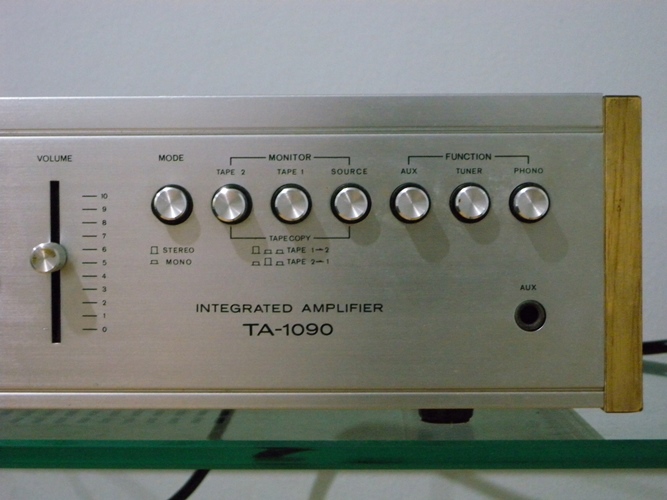

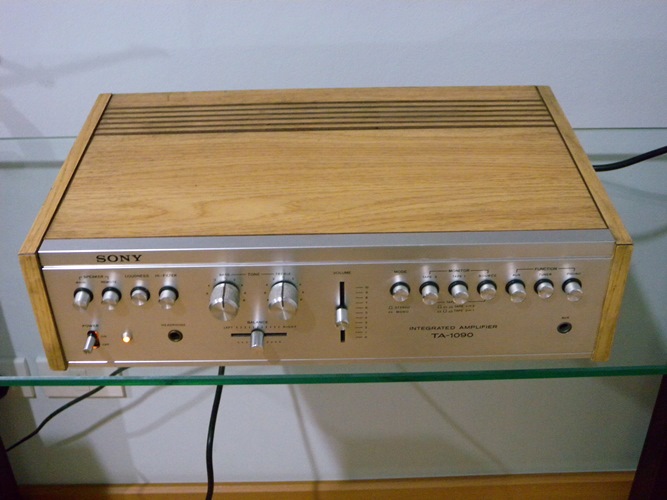

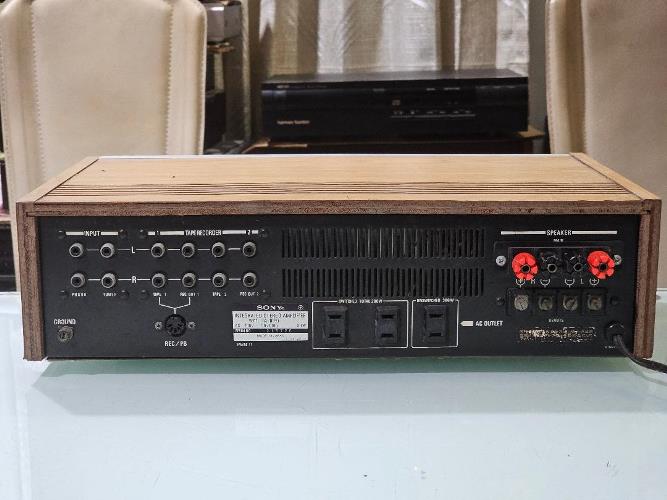

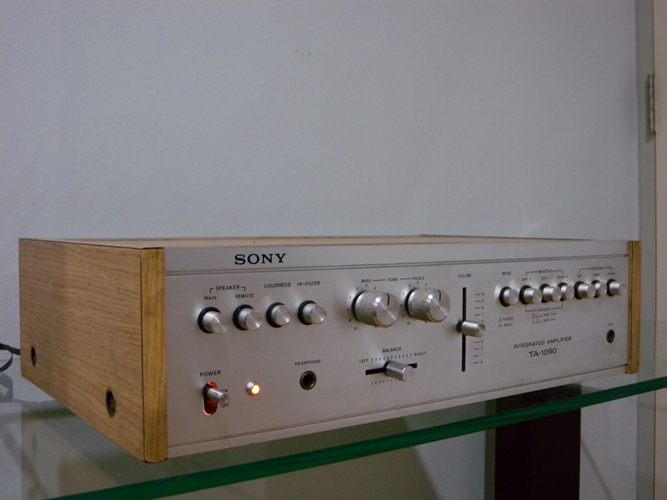

SONY TA-1090 Stereo Integrated Amplifier ผลิตญี่ปุ่น ใช้ไฟฟ้า 100V พลังเสียง 70 วัตต์ต่อข้าง ต่อลำโพงได้ 2 คู่ และ Tuner, CD, Tape, Phono 1-2, Aux กว้าง 42 สูง 12 ลึก 30 ซม. น้ำหนักประมาณ 7 กก. ทุกอย่างยังใช้งานได้ดี
Specification:
- Type: Stereo pre-main amplifier
- Circuit system: Direct coupling quasi complimentary service symmetric SEPP circuit
- Dynamic Power (IHF): 70W (8 Ω)
- Effective output (both channel drive): 23W + 23W (8 ω, 1 kHz)
20W + 20W (8 Ω, 40 Hz to 20 kHz)
- Output Bandwidth Characteristics (IHF): 10 Hz to 40 kHz
- Harmonic distortion factor: 0.5% or Less (Rating)
0.2% or Less (at 1W)
- Cross modulation distortion factor:
(60Hz:7kHz=4:1) 0.5% or Less (Rating)
0.2% or Less (at 1W)
- Damping factor: 22 or More (1 kHz, 8 Ω)
- Phono input: Phono1, 2 :
2.5mV/47k Ω
- Phono maximum allowable input: Phono1, 2 : 70 mV
- PhonoSN ratio Phono1, 2 : 70 dB or more (input 2.5 mV, B network)
- Output Level / Impedance: Rec out1, 2 : 250mV/13k Ω
- Loudness control: (Volume-30dB) +10dB(50Hz)
+3dB(10kHz)
- Tone control: Bass : ± 10 dB (100 Hz)
Treble : ± 10 dB (10 kHz)
- Filter High : 5 kHz or higher, 6dB/oct.
- Power outlet Power switch interlock : 2 systems
Power switch not linked : 1 system
Total 500W
- Power consumption: 65W
- External dimensions: Width 42 x Height 12 x Depth 29cm
- Weight: 7kg
Manufacturer: Japan
Voltage: 100V
Condition: Perfect
ราคา 12,990 บาท
ลด 3,000 บาทเหลือเพียง 9,900 บาทเท่านั้น
โทร 081-147-8000
