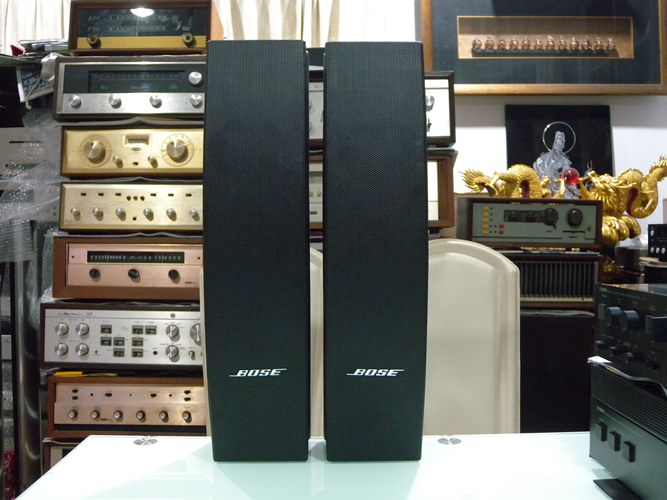

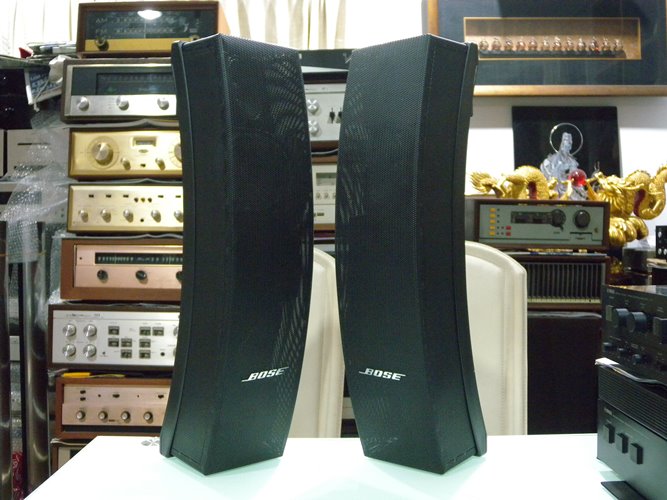

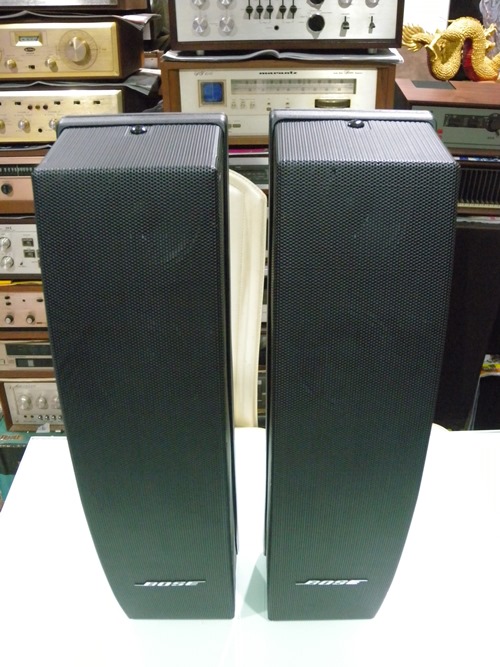

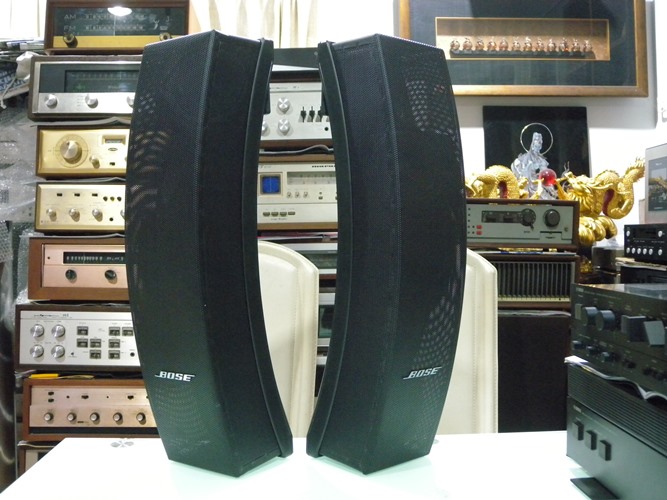

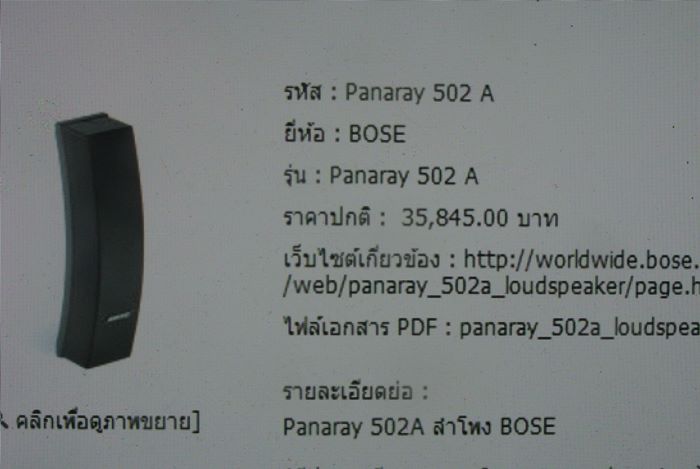

2. BOSE® Panaray502A® ลำโพงดีไซน์สวย ได้รับความนิยมมากที่สุดทั้งในบ้าน Studio ห้องประชุม/สัมนา ร้าน Coffee & Bakery และห้อง Karaoke
TECHNICAL DATA SHEET
• Articulated Array® design provides wide 120° x 70° pattern optimized
for smooth band to band coverage
• Five Bose® 4.5" (114 mm) full-range drivers for unsurpassed natural
sound quality. Elimination of tweeters and crossover provides lifelike
vocal and instrument reinforcement
• Mid/high configuration allows bass management and design flexibility.
Use with the Panaray 502® B loudspeaker, or the MB4, MB12 or MB24
modular base loudspeakers for full-range reinforcement
• Sleek, elegant design for architectural compatibility. Modular
components for system design flexibility
• Full line of Bose-designed accessories for easy installation
• Requires active equalization for best performance
TECHNICAL SPECIFICATIONS
• System Performance
• Frequency Response (+/-3 dB)1 150 Hz - 17 kHz
• Frequency Range (-10 dB)1 110 Hz - 20 kHz
• Nominal Dispersion 120° H x 70° V
• Loudspeaker EQ Required
• Overload Protection 4-ampre AGC 4 (Buss) or 3AG (Littlefuse)
• Long-Term Power Handling2 150 W (600 W peak)
• Sensitivity (SPL / 1 W @ 1 m)3 90 dB SPL
• Maximum SPL @ 1 m4 112 dB SPL (118 dB SPL peak)
• Nominal Impedance 8 Ω
• Transformer Taps (70/100 V) CVT-5 70V/100V transformer available
TRANSDUCERS

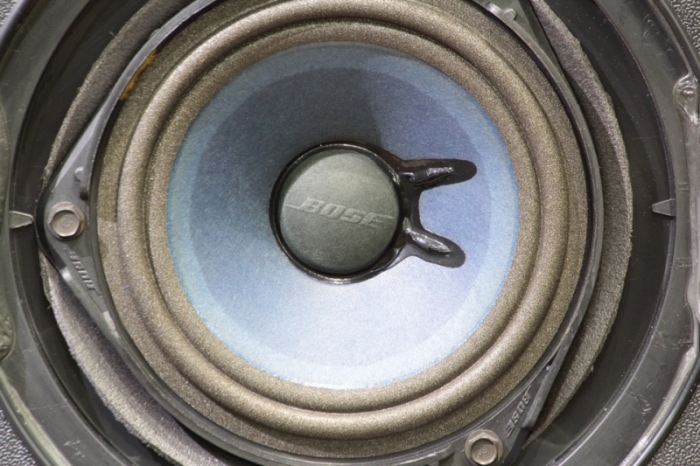

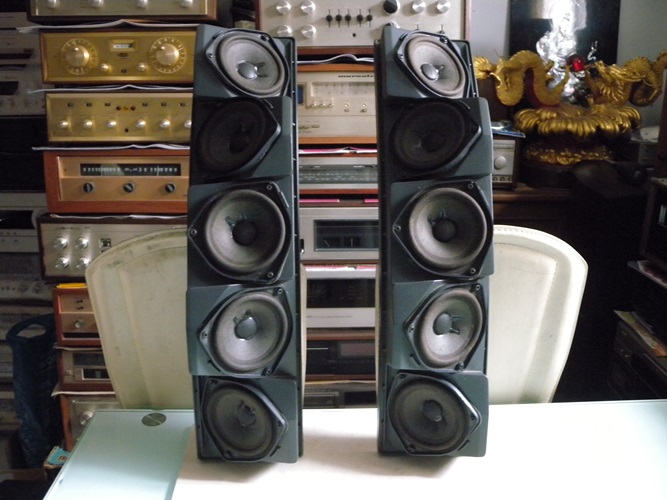

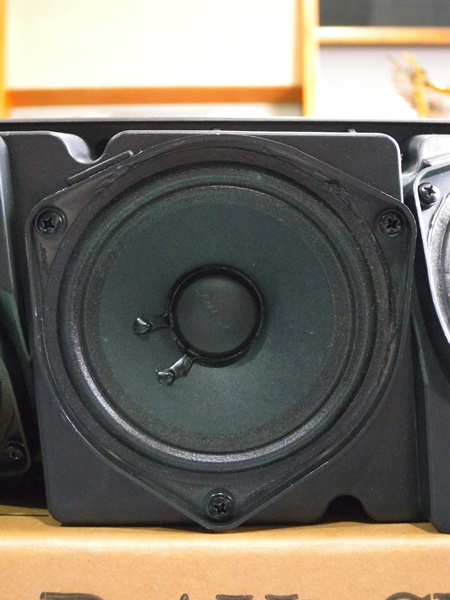

• Driver Compliment Five (5) 4.5" (114 mm) helical voice coil drivers
PHYSICAL
• Enclosure Mica-reinforced structural foam, textured
• Grille Powder-coated steel grille
• Environmental Indoor use only

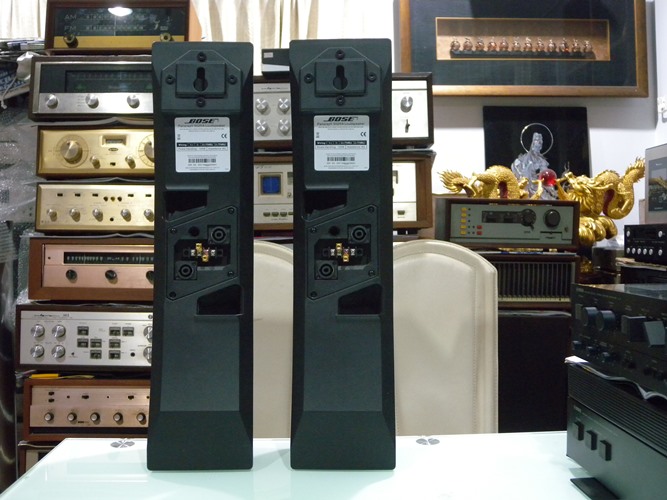

• Connectors Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
• Two (2) parallel-wired barrier strips
• Suspension / Mounting Four (4) 8 mm threaded inserts (back)
• Dimensions 23.8" H x 5.8" W x 7.1" D (603 mm x 146 mm x 179 mm)
• Net Weight 15 lb (6.8 kg)
• Manufacturer: USA
• Condition: Perfect
ราคา 11,900 บาท
แถมสายลำโพง 4 เส้นสำหรับต่อ BOSE® Panaray502A® โดยเฉพาะ มูลค่า 2,000 บาท
โทร.081-147-8000
